6-Group Multi Coin Acceptor for Arcade Machines

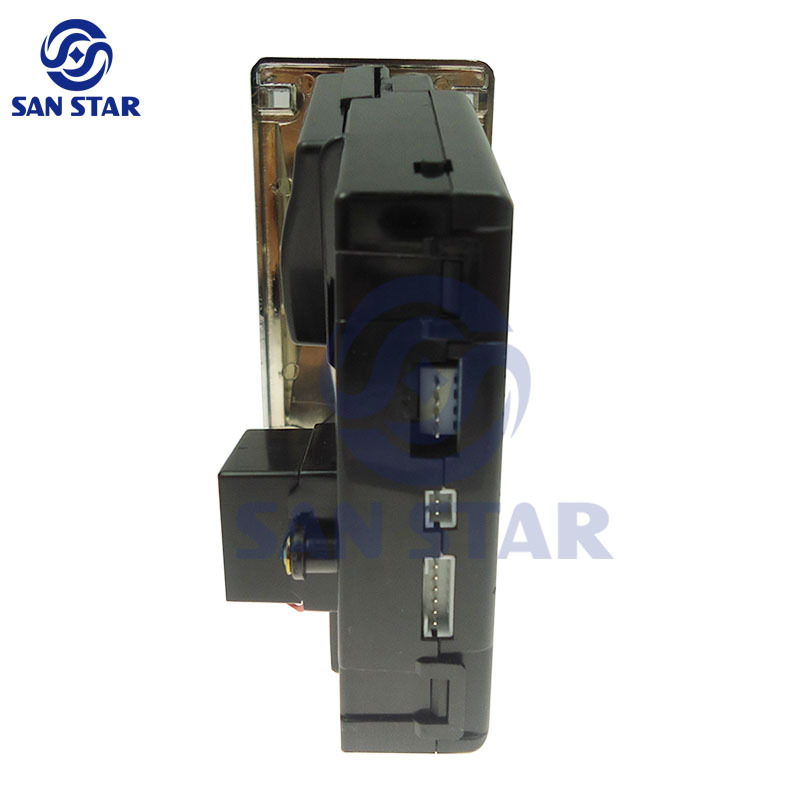

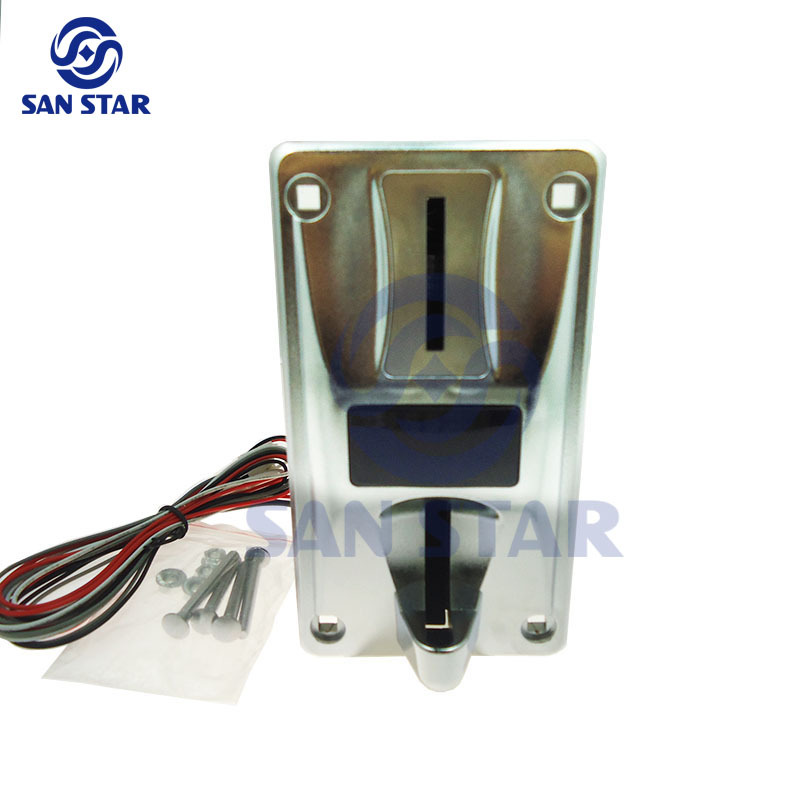

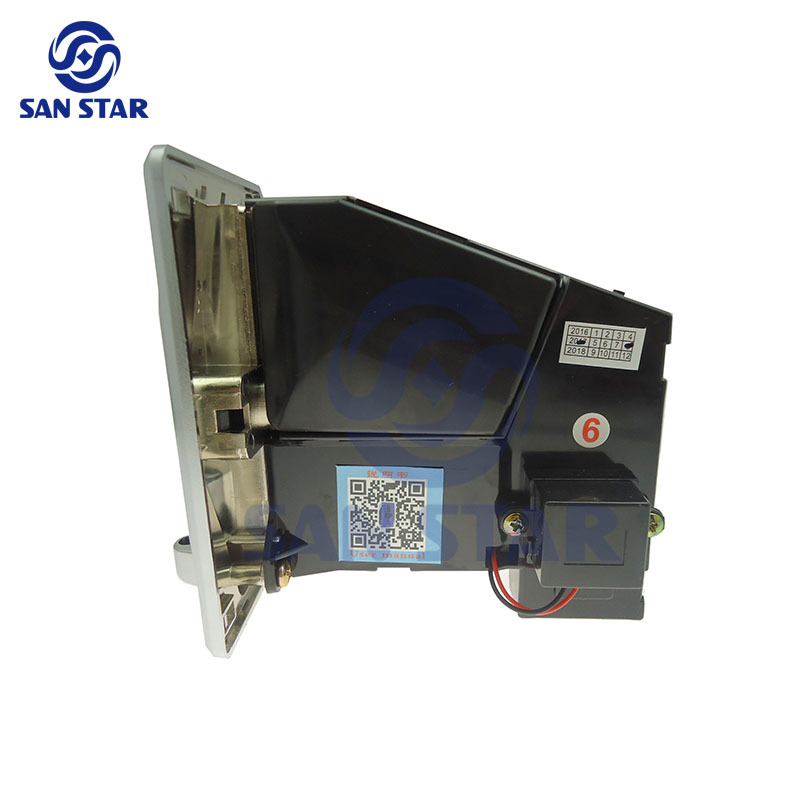

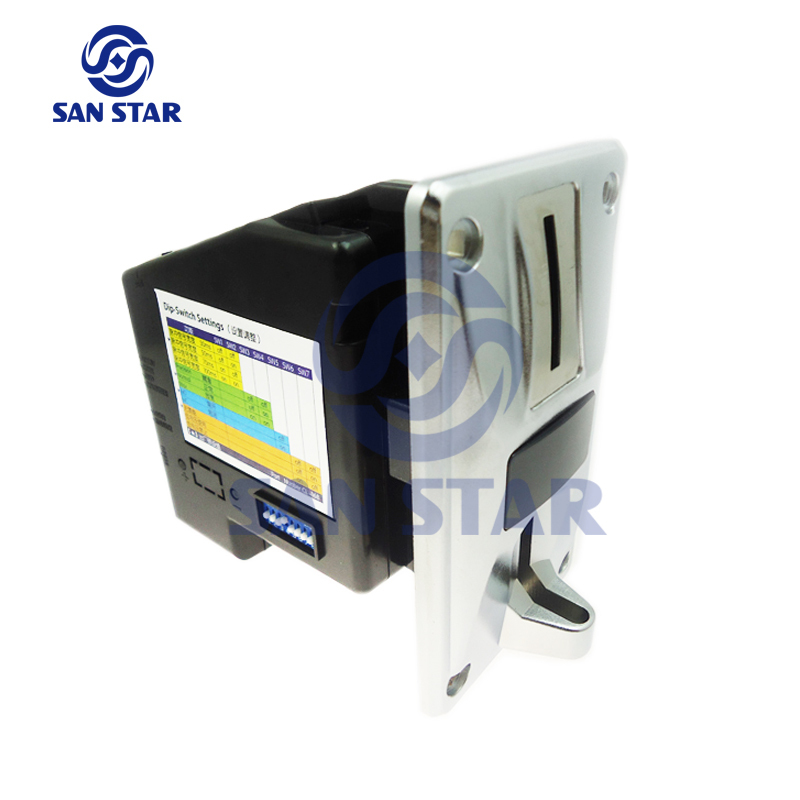

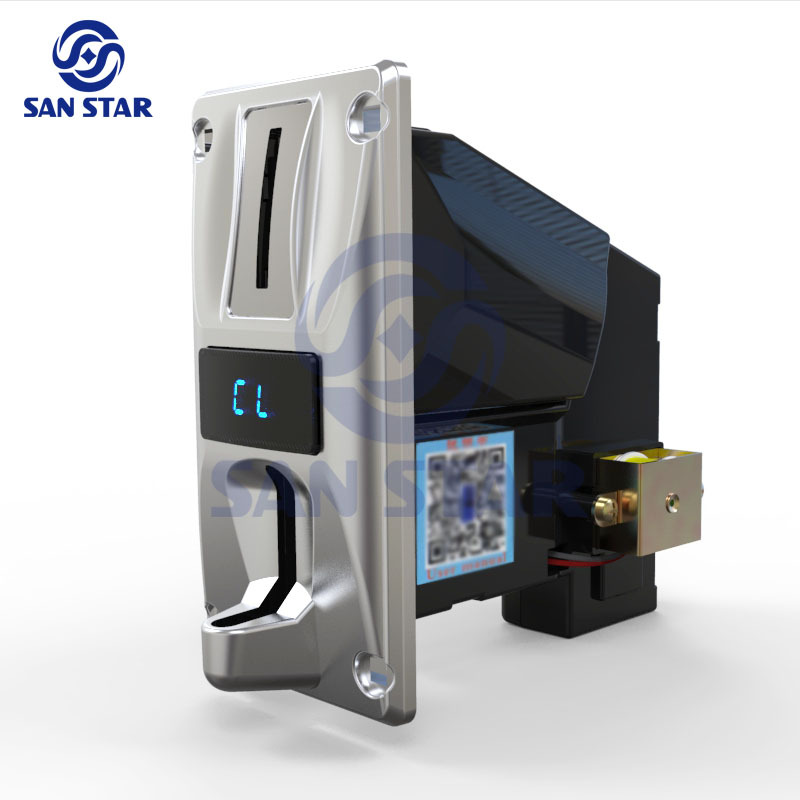

This 6-group multi coin acceptor is designed for arcade machines and other coin-operated equipment that need to accept different types of coins or tokens.
The programmable coin selector can be configured for up to 6 coin groups, allowing one unit to recognize different coin types according to the required settings. An LED display and control buttons make it easier to configure coin groups, sampling functions and pulse values.
This makes the coin acceptor suitable for arcade machines used in different markets where multiple coin denominations or tokens need to be configured.
Key Features
- Supports up to 6 groups of coins
- Programmable coin recognition
- LED display for setup and status information
- Adjustable pulse values for different coin types
- Coin sampling / learning function
- Supports coin diameters from 12 to 30 mm
- Supports coin thickness from 1.2 to 3.5 mm
- Working voltage: DC 12V ±10%
- Suitable for arcade machines and coin-operated equipment
- Suitable for different coin and token configurations
Multi Coin Acceptor for South American Arcade Markets
The multi coin configuration makes this coin selector suitable for arcade operators and machine builders who need to configure different coin types for their local market.
Instead of being limited to one fixed coin, the unit can be programmed for multiple coin groups. This provides flexibility when arcade machines are configured for different denominations or tokens.
The actual coin settings should be programmed according to the coins or tokens used in the machine.
Programmable Coin Selector
The coin selector allows users to configure the number of coin groups and assign different pulse values.
The C setting determines the number of coin types or groups being configured, while the P setting is used to set the corresponding pulse value.
Up to 6 coin groups can be configured according to the product specifications.
Coin Sampling and Learning Function
The built-in coin sampling function allows the operator to configure the acceptor according to the actual coins being used.
During setup, sample coins are inserted according to the programming procedure. This allows the coin selector to learn and store the required coin characteristics.
For arcade machines operating in different countries or with different local coins and tokens, the coin sampling function provides useful configuration flexibility.

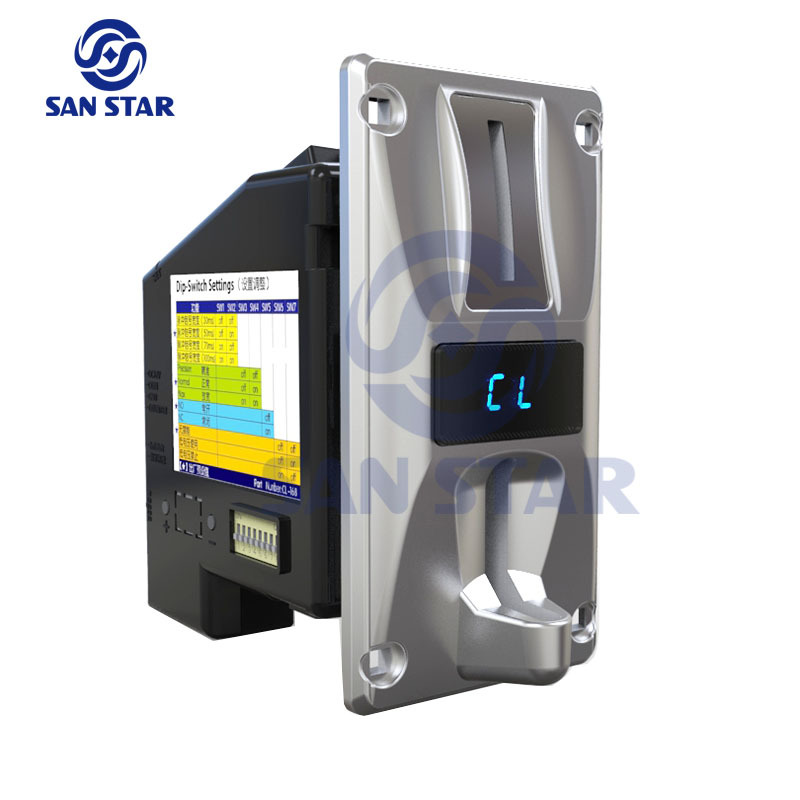

LED Display
The built-in LED display shows configuration information and error codes during operation and setup.
The display allows users to check the current settings and identify certain detection errors without relying on an external display.
Adjustable Pulse Output
Different coin types can be assigned different pulse values.
This allows the arcade machine control system to receive different pulse counts according to the programmed coin type.
For example, different coin denominations can be configured with different pulse values when the machine requires different credit values.
The actual pulse configuration should be matched to the requirements of the arcade machine or control system.
Coin Size Compatibility
The multi coin acceptor is designed for coins within the following size range:
- Coin diameter: 12–30 mm
- Coin thickness: 1.2–3.5 mm
Before ordering, users should check the diameter and thickness of their actual coins or tokens to confirm compatibility.
Error Code Display
The LED display can show error codes for different detection conditions.
The documented codes include:
- E1 – Inductance Error
- E2 – No.1 Infrared Error
- E3 – No.2 Infrared Error
- E4 – No.3 Infrared Error
- E5 – No.4 Infrared Error
- E6 – No.5 Infrared Error
These error indications can help with basic troubleshooting during installation and operation.
Applications
This programmable multi coin acceptor can be used for:
- Arcade machines
- Arcade game cabinets
- Coin-operated amusement machines
- Video arcade games
- Commercial arcade equipment
- DIY arcade machines
- Coin-operated gaming equipment
- Machines requiring multiple coin or token settings
Product Specifications
| Item |
Specification |
| Product Type |
Multi Coin Acceptor / Coin Selector |
| Model / SKU |
LED Display Multi Coin Selector 10 |
| Maximum Coin Groups |
6 |
| Display |
LED Display |
| Working Voltage |
DC 12V ±10% |
| Coin Diameter |
12–30 mm |
| Coin Thickness |
1.2–3.5 mm |
| Coin Recognition |
Programmable |
| Coin Sampling |
Supported |
| Pulse Value |
Adjustable |
| Error Code Display |
Supported |
| Application |
Arcade Machines / Coin-Operated Equipment |
Important Compatibility Note
Coin recognition depends on the actual coins or tokens used and the programming settings of the coin acceptor.
Before purchasing, please confirm:
- Coin diameter
- Coin thickness
- Number of coin types required
- Required pulse value
- Arcade machine or control-system requirements
This helps ensure the selected coin acceptor is suitable for the intended arcade machine.

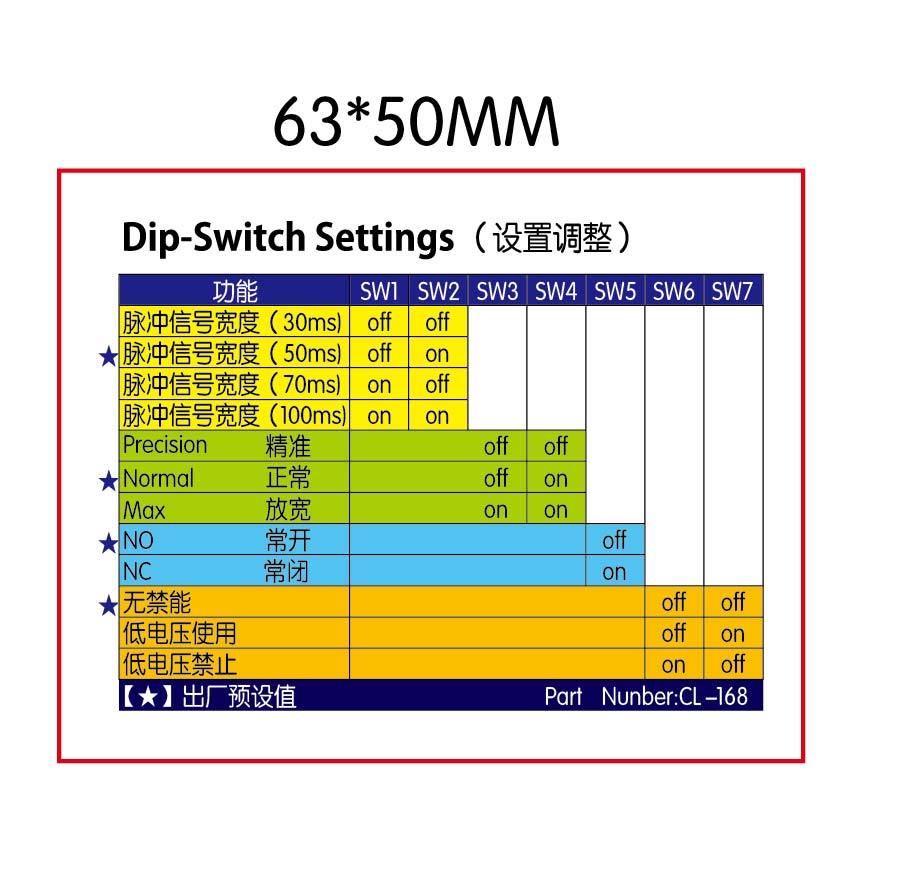

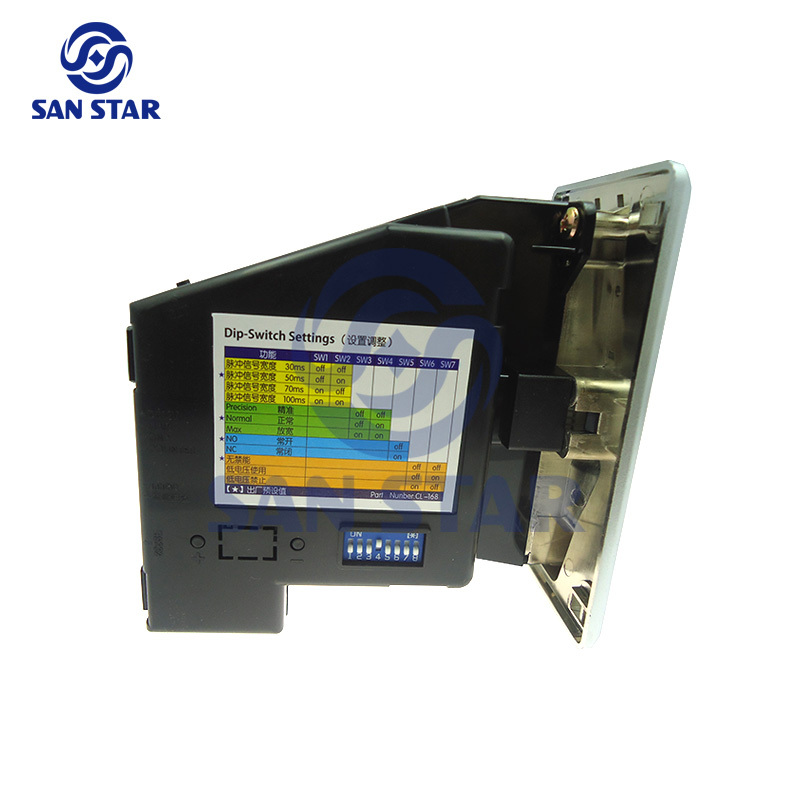

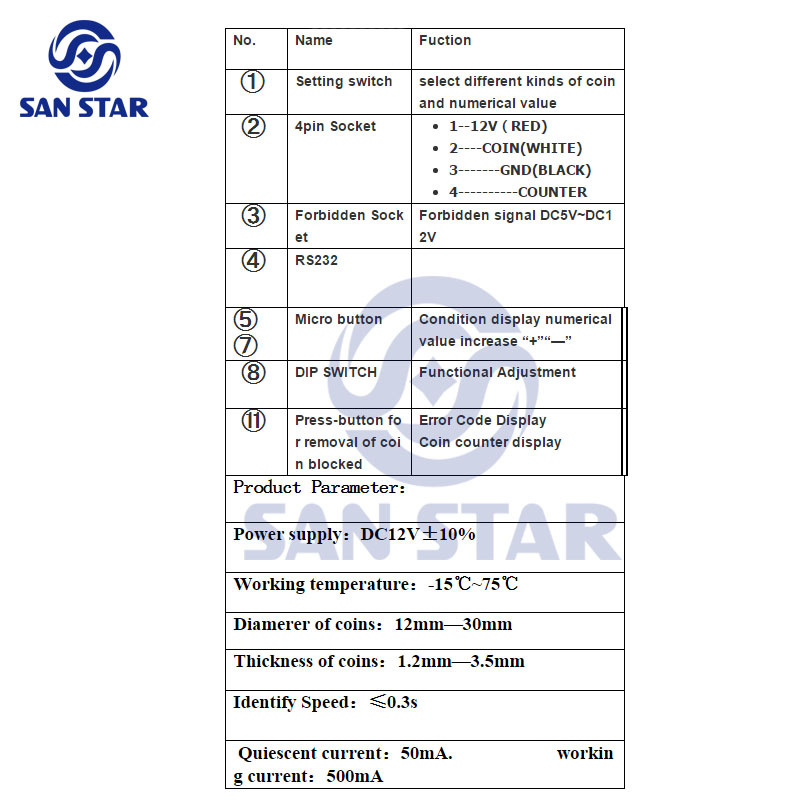

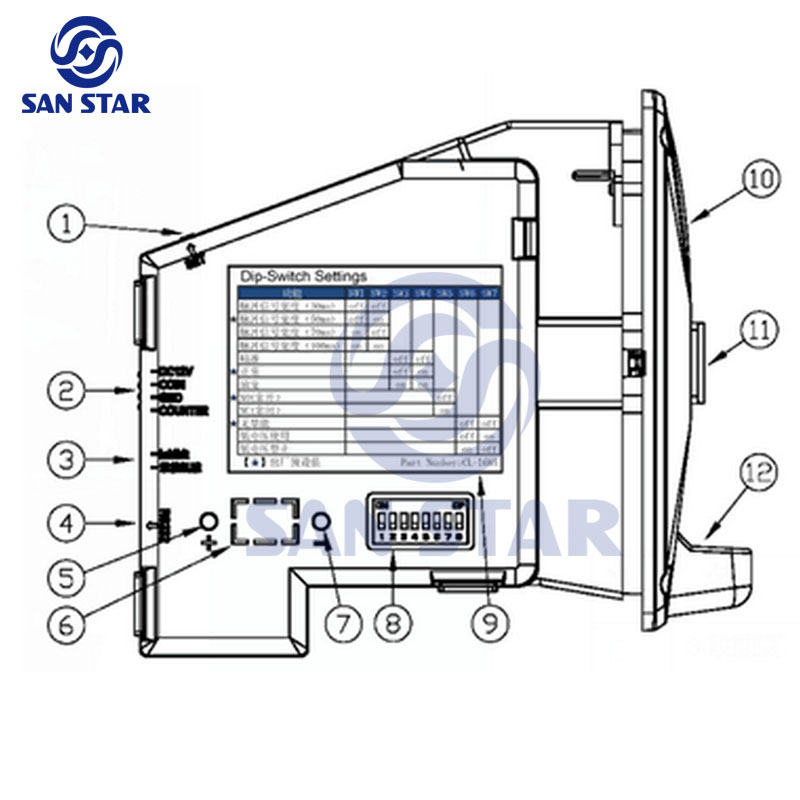

A:Steps for altering the internal set ：(Press the ⑤and ⑦buttons for about 3 seconds ,then the letter C will appear)B:Now you can alter the set : 1：When letter C appears （select quantity of different coins）, press the⑤ or⑦ buttonto adjust the numerical value you need, and then press the SET button① after the setting is completed. 2：When letter “P” appears(the pulsed value for different coins）, press the⑤ or⑦to adjust numerical value you need, and then press the SET button① after the setting is completed. Introductions：：C：The quantity of different coins you choose (ex.:you choose two coins CNY 0.5 and CNY 1 , C=2） P : The pulsed value for different coins (ex:set CNY 0.5, 1→P1= 1 ,P2= 2 ) Set the sampling method for coin:1.Press the SET button① and then the letter “A” will appear. Press the SET button again and then the letter “A1” will appear. Please put in the first 20 coins，then “A2” will appear.Put in another kind of 20 coins。By that analogy, let all kinds of coins be set.You will see number “0” appears in ⑾ button then change into letter CL。 Error Code Display：E1：Inductance ErrorE2：No.1 Infrared ErrorE3：No.2 Infrared ErrorE4：No.3 Infrared ErrorE5：No.4 Infrared ErrorE6：No.5 Infrared Error
