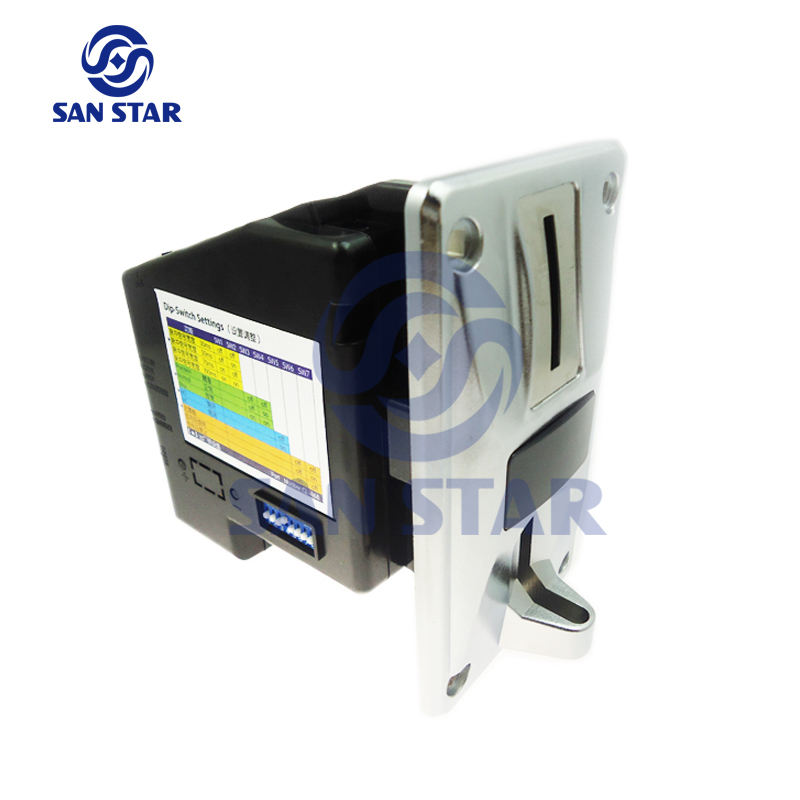

This is an intellgent display multi coin selector can accept 3 groups of coin.

0.0 (0 Reviews)

0 Sold

~~$34.38~~ $19.69

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

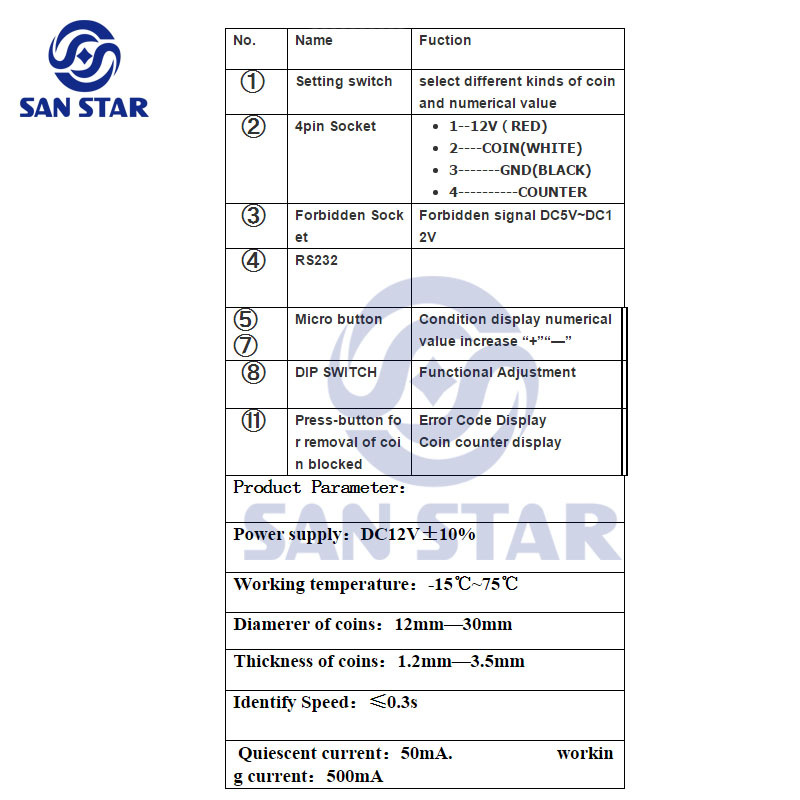

Voltage:DC12V+10%

3 groups coin,

coin diameter:12mm—30mm,

thickness:1.2mm—3.5mm

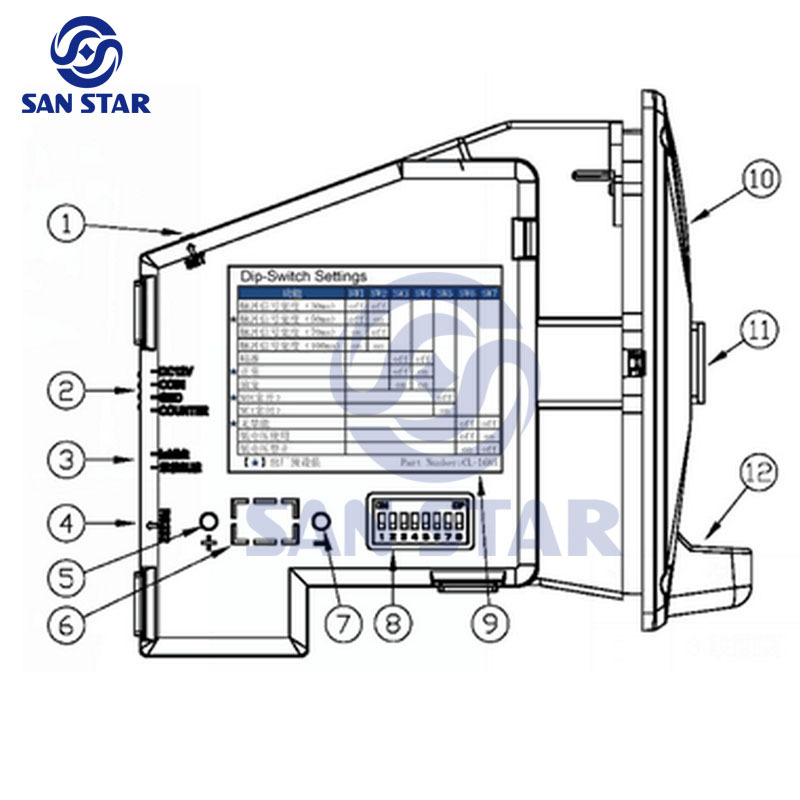

A:Steps for altering the internal set ：
(Press the ⑤and ⑦buttons for about 3 seconds ,then the letter C will appear)

B:Now you can alter the set :
1：When letter C appears （select quantity of different coins）, press the⑤ or⑦ buttonto adjust the numerical value you need, and then press the SET button① after the setting is completed.

2：When letter “P” appears(the pulsed value for different coins）, press the⑤ or⑦to adjust numerical value you need, and then press the SET button① after the setting is completed.

Introductions：：
C：The quantity of different coins you choose (ex.:you choose two coins CNY 0.5 and CNY 1 , C=2）
P : The pulsed value for different coins (ex:set CNY 0.5, 1→P1= 1 ,P2= 2 )

Set the sampling method for coin:

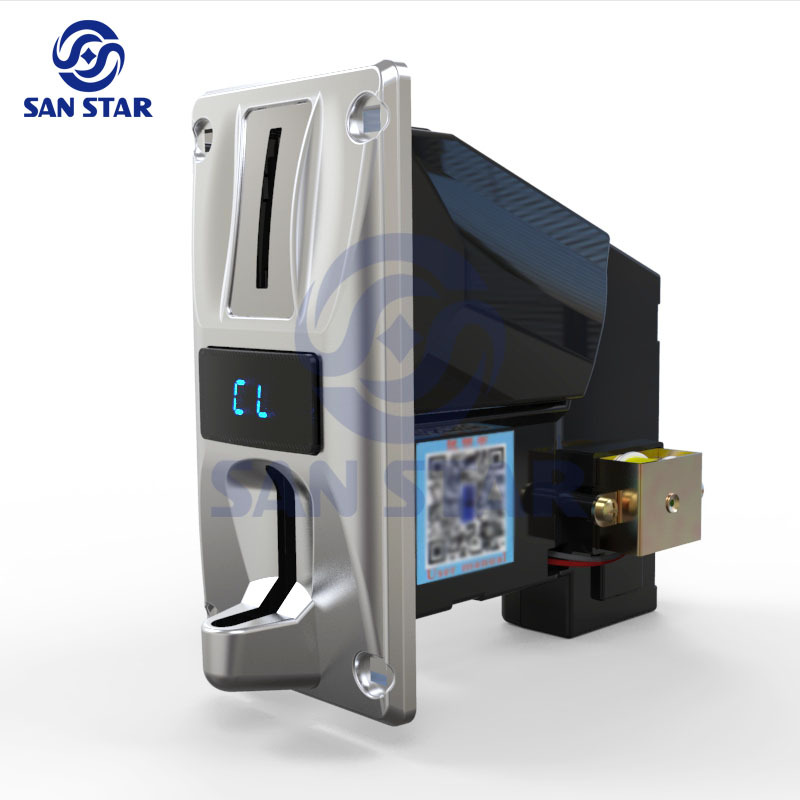

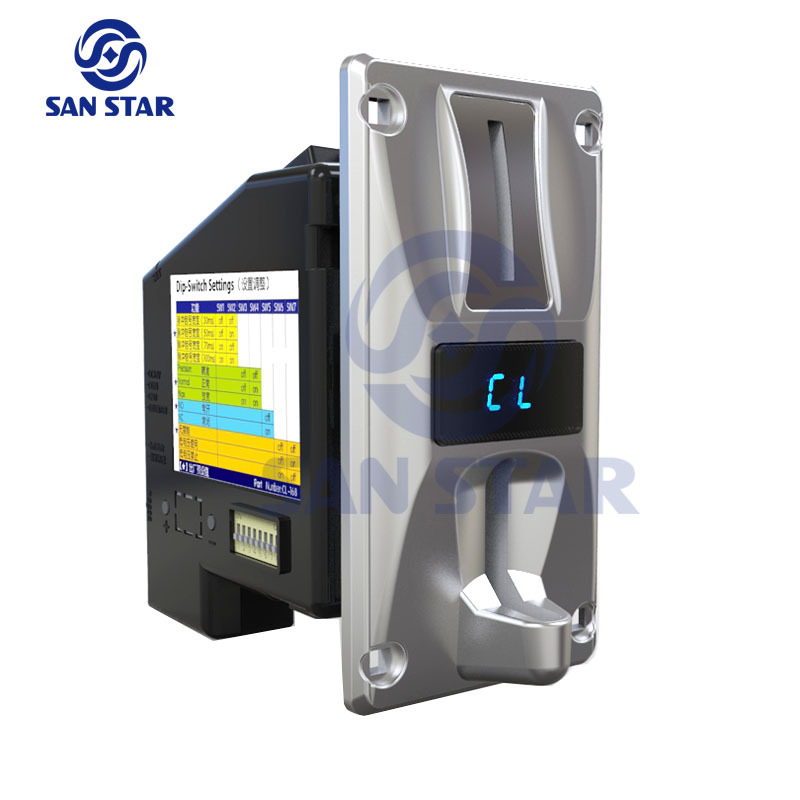

1.Press the SET button① and then the letter “A” will appear. Press the SET button again and then the letter “A1” will appear. Please put in the first 20 coins，then “A2” will appear.Put in another kind of 20 coins。By that analogy, let all kinds of coins be set.You will see number “0” appears in ⑾ button then change into letter CL。

Error Code Display：
E1：Inductance Error
E2：No.1 Infrared Error
E3：No.2 Infrared Error
E4：No.3 Infrared Error
E5：No.4 Infrared Error
E6：No.5 Infrared Error
