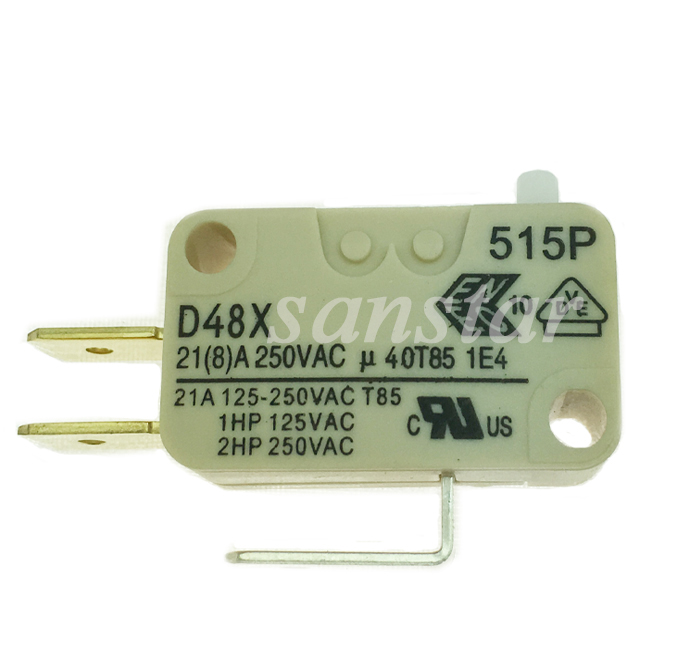

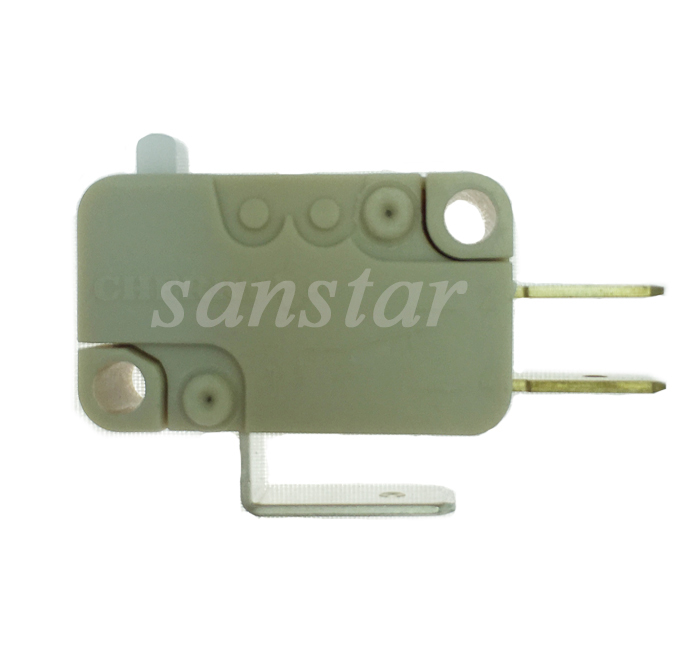

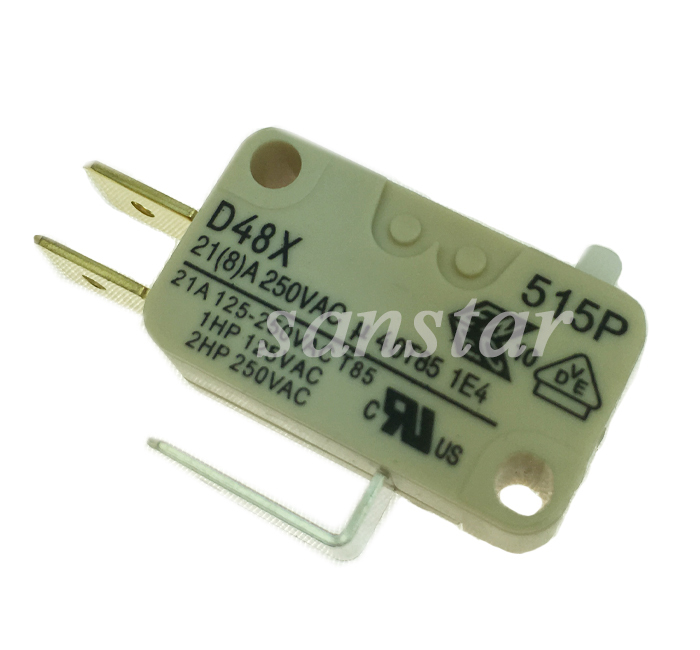

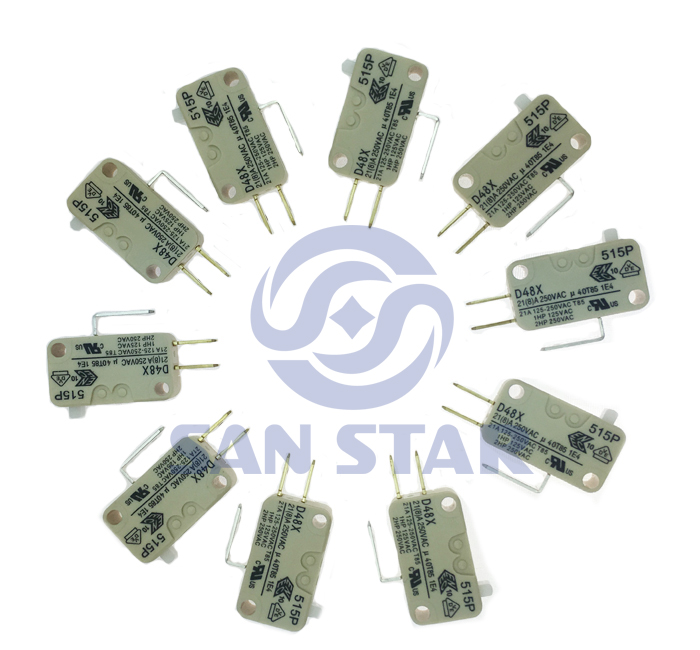

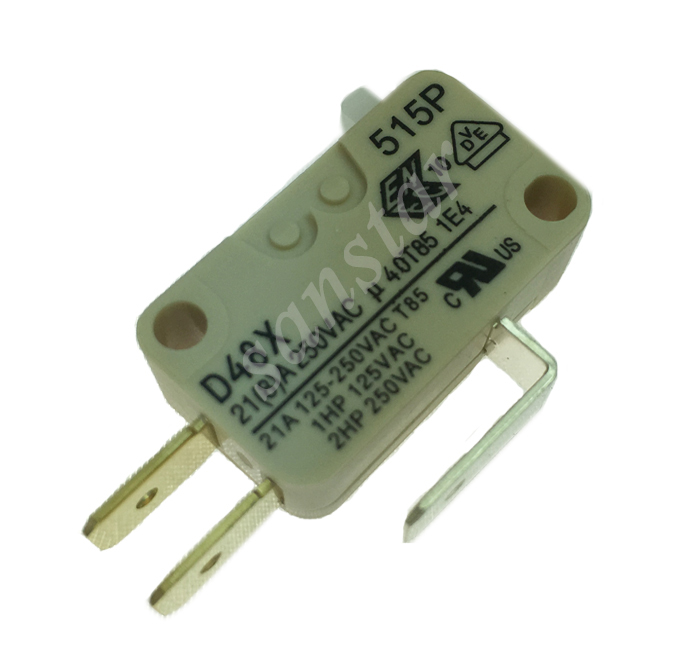

D48X Cherry Microswitch for Button

SKU: D48X Cherry Microswitch for Button
0.0 (0 Reviews)
10 Sold
$1.35 $1.35
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • D48X Cherry Microswitch for Button
  • D48X Cherry Microswitch for Button
  • D48X Cherry Microswitch for Button
  • D48X Cherry Microswitch for Button
  • D48X Cherry Microswitch for Button
  • D48X Cherry Microswitch for Button
  • D48X Cherry Microswitch for Button
  • D48X Cherry Microswitch for Button
  • D48X Cherry Microswitch for Button
  • D48X Cherry Microswitch for Button
1/1
  • D48X Cherry Microswitch for Button
  • D48X Cherry Microswitch for Button
  • D48X Cherry Microswitch for Button
  • D48X Cherry Microswitch for Button
  • D48X Cherry Microswitch for Button
Frequently Bought Together
more
Frequently Bought Together
  • Description




smileyD48X,A light force Cherry microswitch is used widely in arcade push button which is suitable for all arcade projects.
smileyCherry switch features in maximum 15 grams and only 0.05A~0.01A current required, easy operation with low consumption, it also comes with gold crosspoint contact and long life coil spring mechanism for reliable service. Standard 3mm mounting hole, easy to install.
smileysafety certificate: UL, ENEC, VDE

heartheartheart
Connector Size:6.4mm
EN61058 rating: 21(8)A, 250V
UL1054 rating: 21A, 1HP,125VAC ,2HP 250VAC
According to EN(Min. Operations):10000
According to UL(Min. Operations):6000
Temperature Rating:-40℃ to +85℃  125℃ or 150 ℃
Flammability Rating:UL94V-O
mounting holes: 3mm
common terminal material: Beryllium Copper
