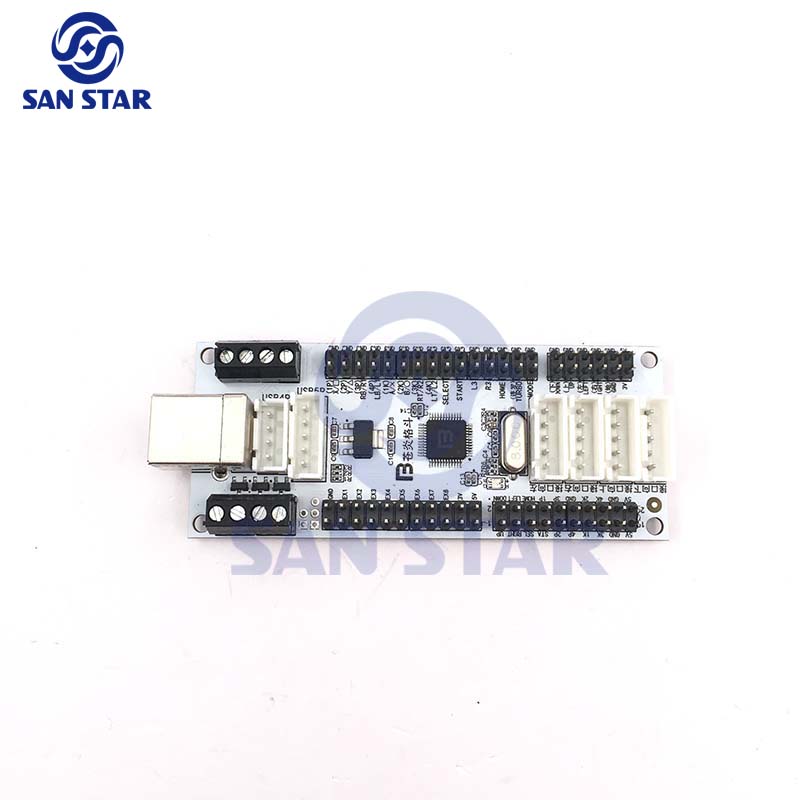

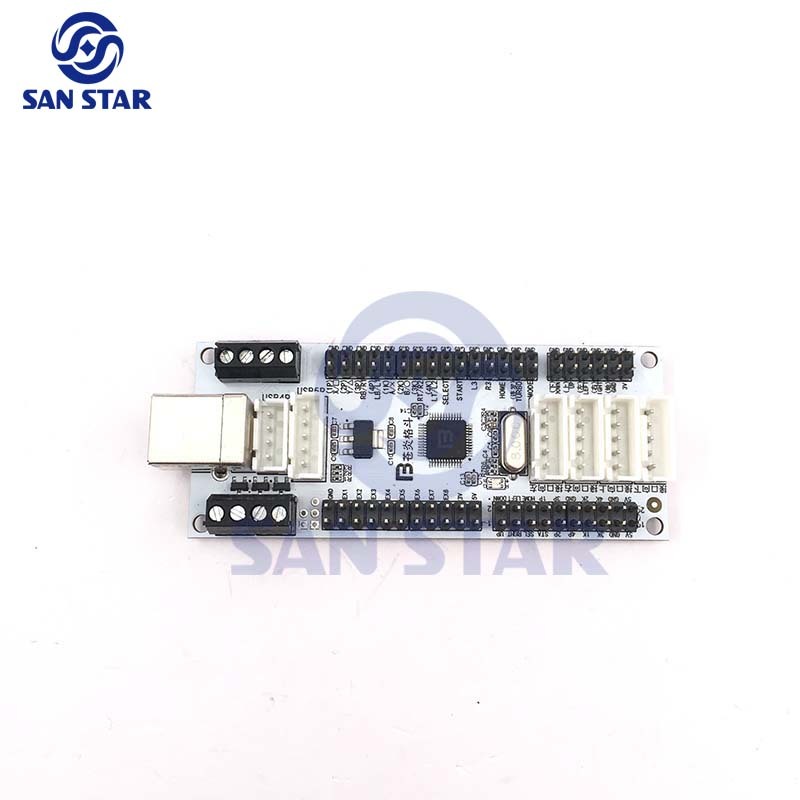

Product features:
1. Extreme response speed, can match the USB joystick encoder
2. Has excellent stability, comes with a voltage regulator module, power supply stability, notebook and desktop front USB interface can be used without the need to purchase a separate USB boost module of lpt interface.

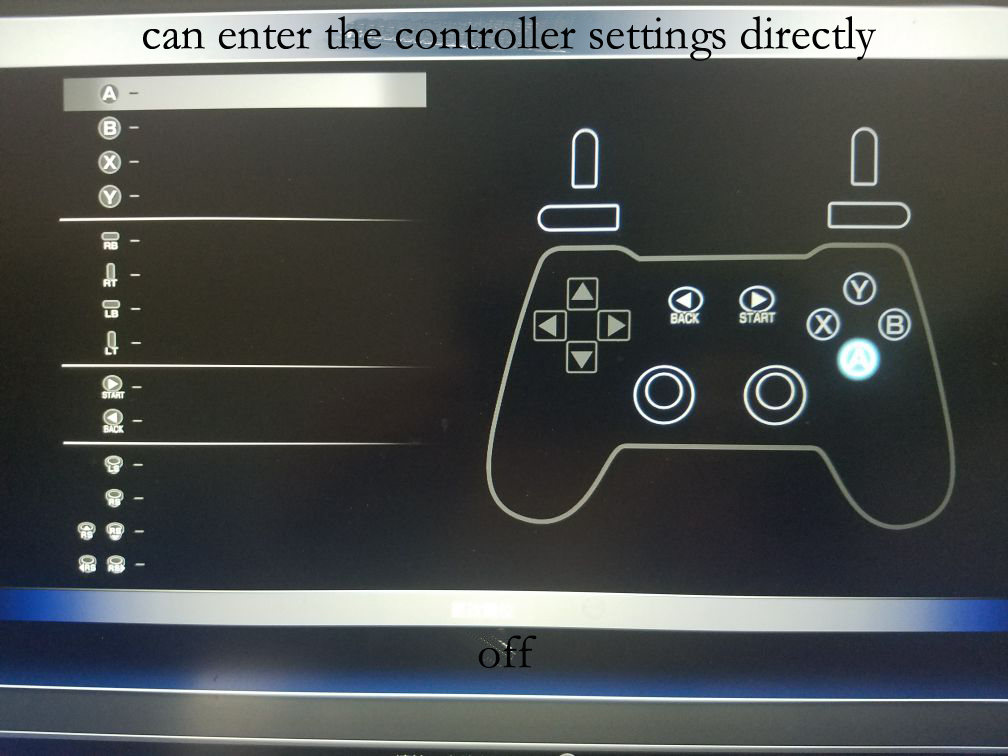

3. Support multiple system platforms such as PC/PS3/Android/Switch mode
4. On the PC, you can simulate the X360 controller and you can play Street Fighter 5 without mapping. Any game that supports the X360 controller can directly match the keys without changing the keys.
5. Support USB XH2.54 4pin interface, USB XH2.54 5pin interface, USB B printer interface, convenient DIY
6.Supports four directions of 5pin connect, no need to change the line, no need to change direction , can find the direction matching interface on the circuit board, convenient for DIY.
7. Support domestic joystick 8 pin interface.
8. Supports Turbo, Axis/Visual helmet switching (Mode)
10. Support with light expansion, voltage optional 3V/5V, support for PS3 4 user LED display
11. WinXP, Vista, Win7, Win8, Win10 and other common systems do not need to install drivers.
12. Support the USB upgrade function. Just use Win system computer then can upgrade, no need to send back
13. Have memory function, and return to factory default function
14. Can rename of the device
15. Can adjust Turbo(continuous shooting/hitting) speed.
16. Can work with Raspberry Pi

Support platform:
Support PS3/ PC/ Android/ Switch mode , can play arcade simulator, street fighter 5 (all platforms mention aboved), the king of fighter 14 (all platforms mention aboved), taken tag 7 GUILTY GEAR Xrd REV (all platforms mention aboved).

Note:

2.The encoder can use PS3 mode and PS4 original controller to play Street Fighter 5,The King of Fighter 14,Takken Tag 7, GUILTY GEAR Xrd REV ,without every 8 minutes re-link problem. Advantage:zero delay,no re-link. Short point: use this way just can play specially game for example Street Fighter 5,The King of Fighter 14,Takken Tag 7, GUILTY GEAR Xrd REV,and every time need to guild by PS4 controller.

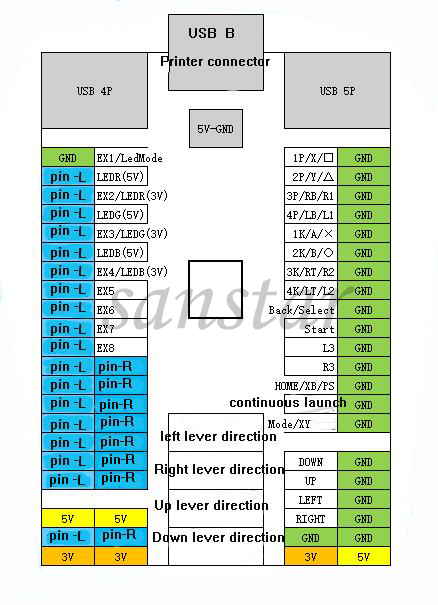

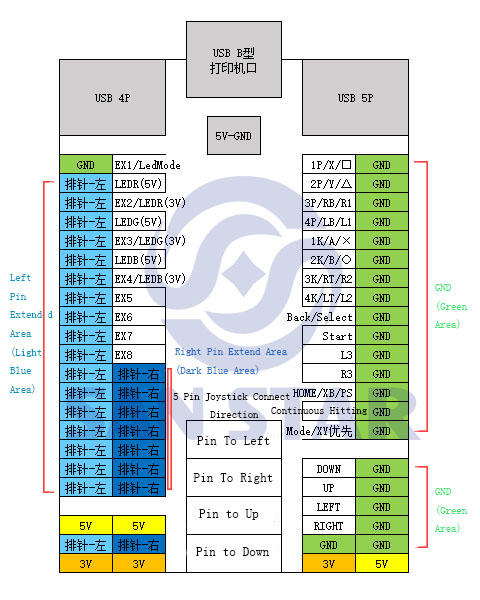

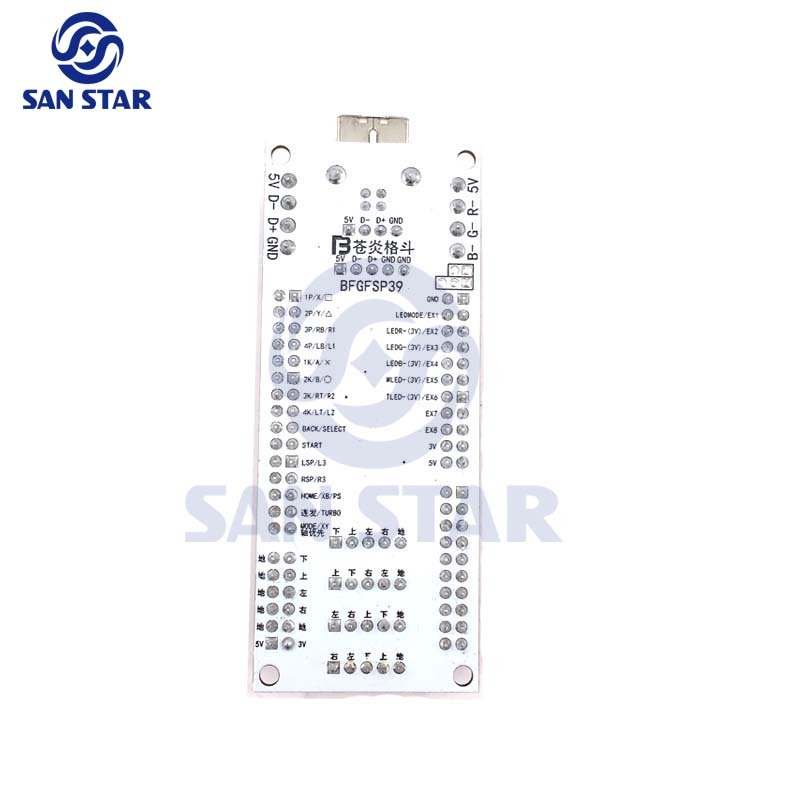

The area in same color pin is connected, for example, green color area are all for GND (buyer who do not know circuit can simply know as the negative pole or 0V).

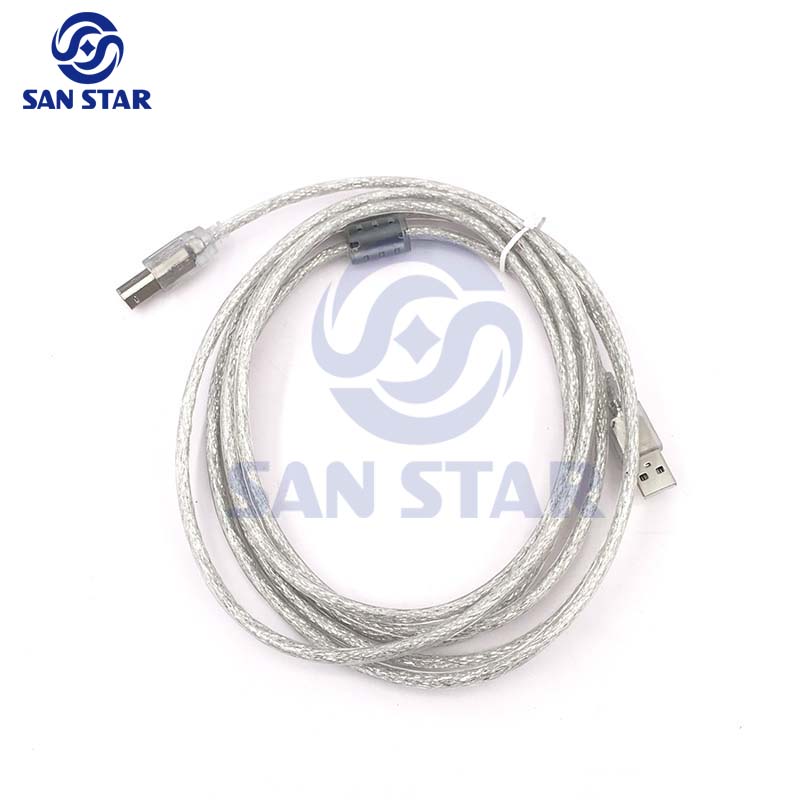

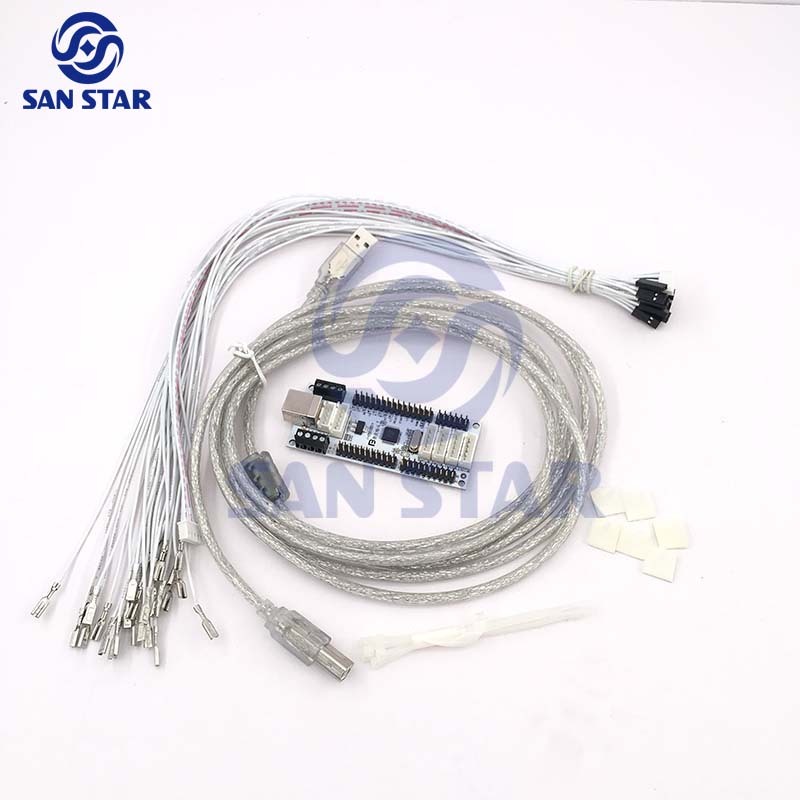

USB cable
This encoder can connect 3 types of USB port. A-B is the default connector USB wire.

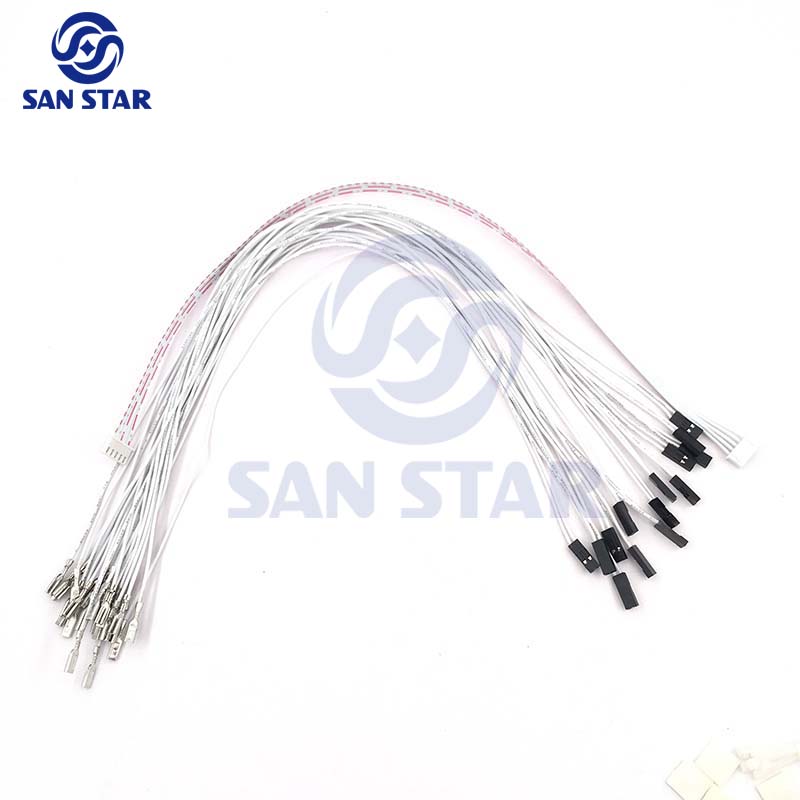

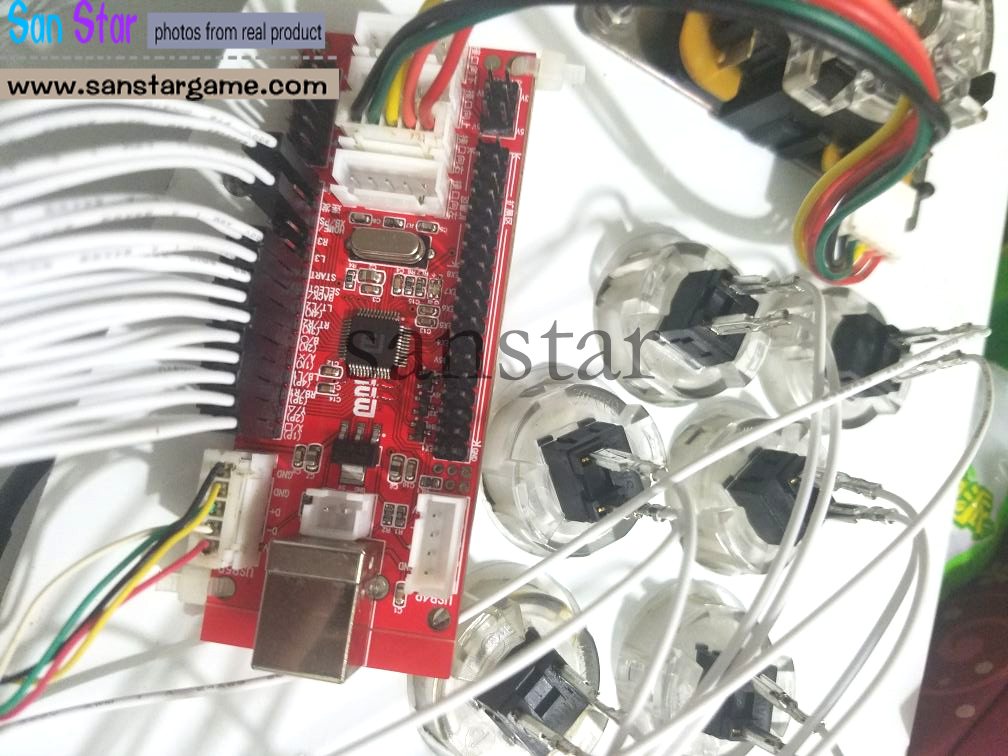

Button cable

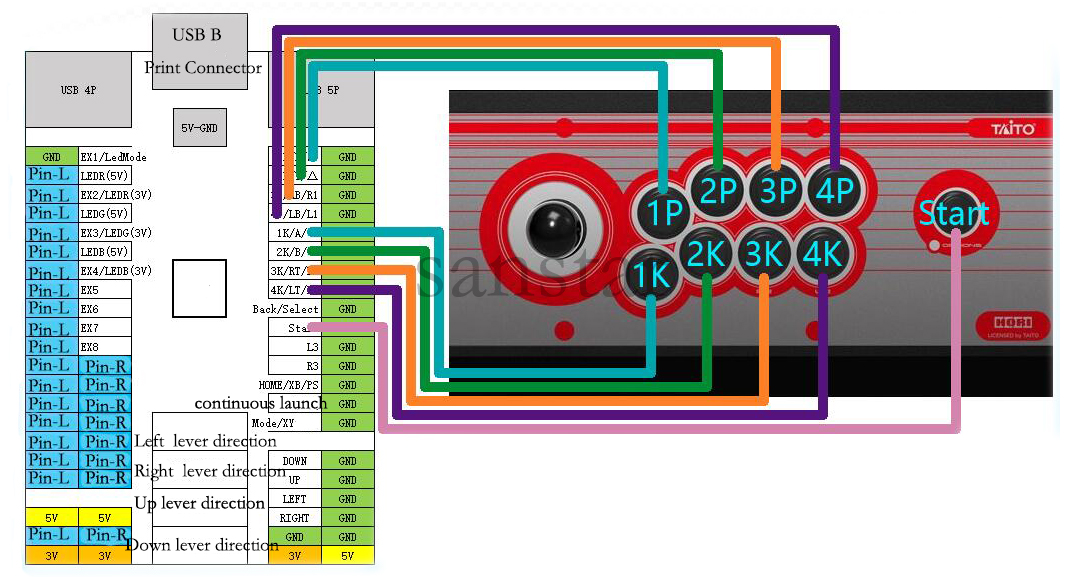

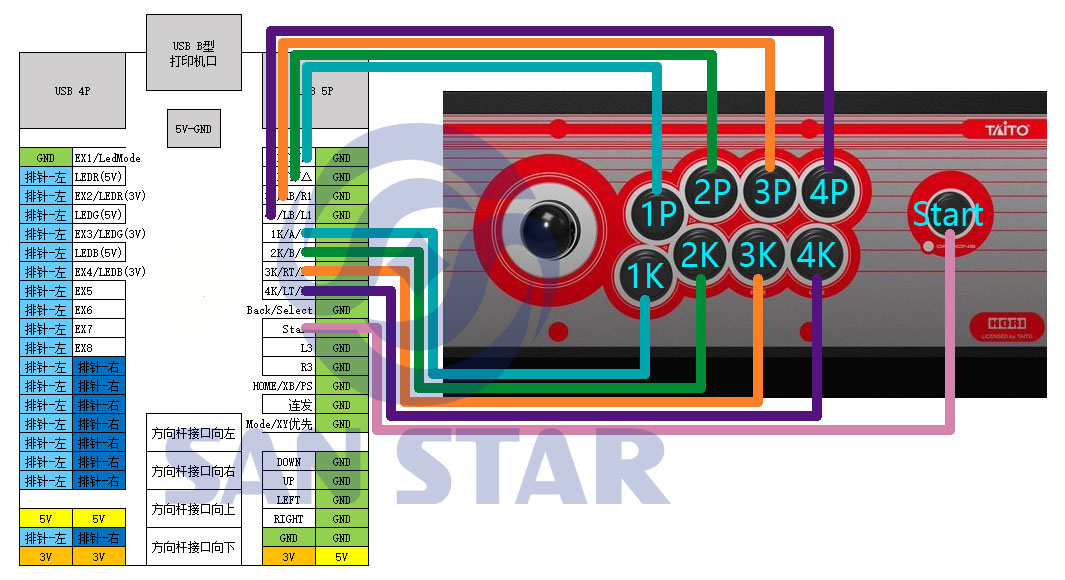

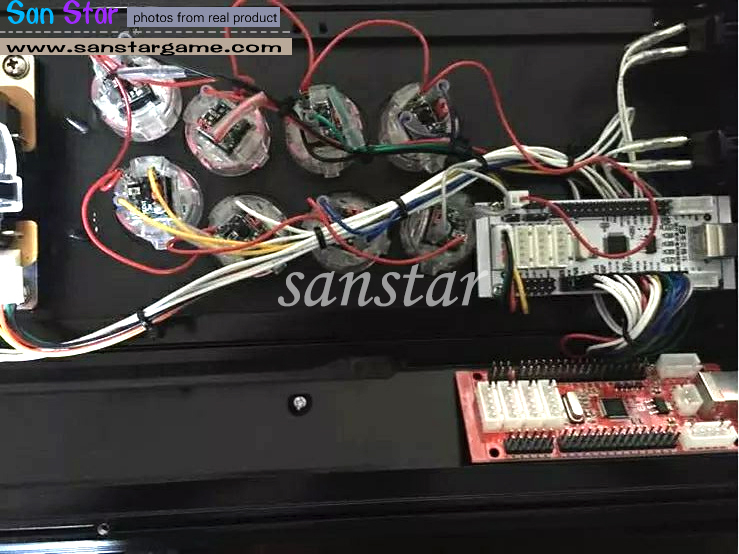

At the controller or arcade machine, the first row of button from left to right to 1P 2P 3P 4P,
The second row from left to right to 1K 2K 3K 4K;
This is standard connection, can use with PC and PS4 Street Fighter 5.
Other function depends on your need.

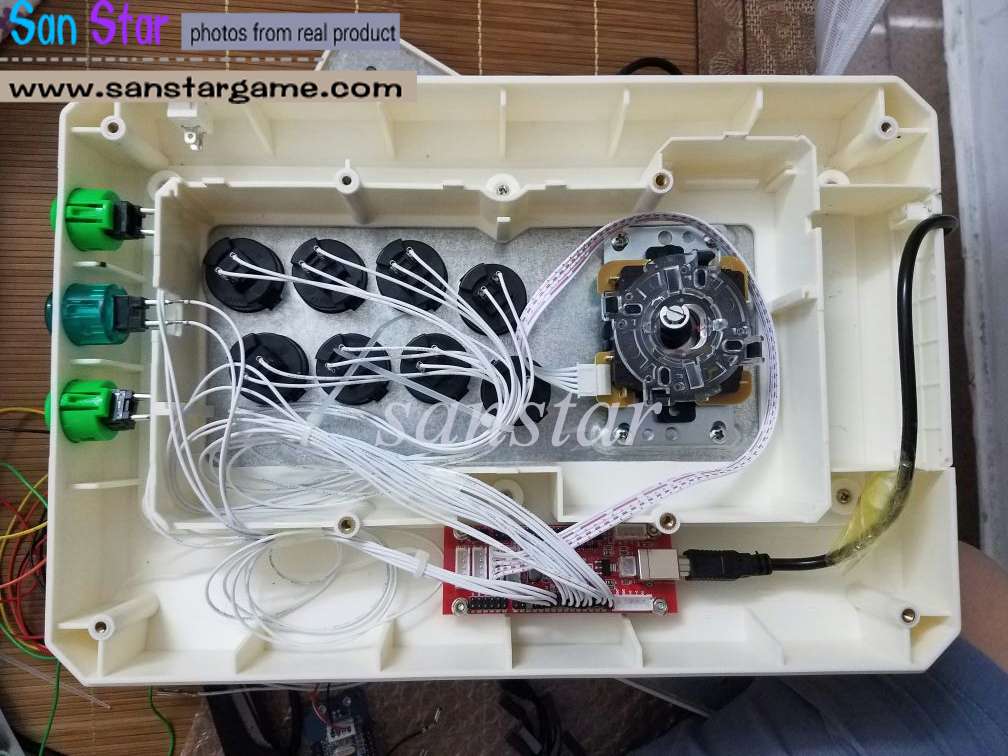

Joystick Cable

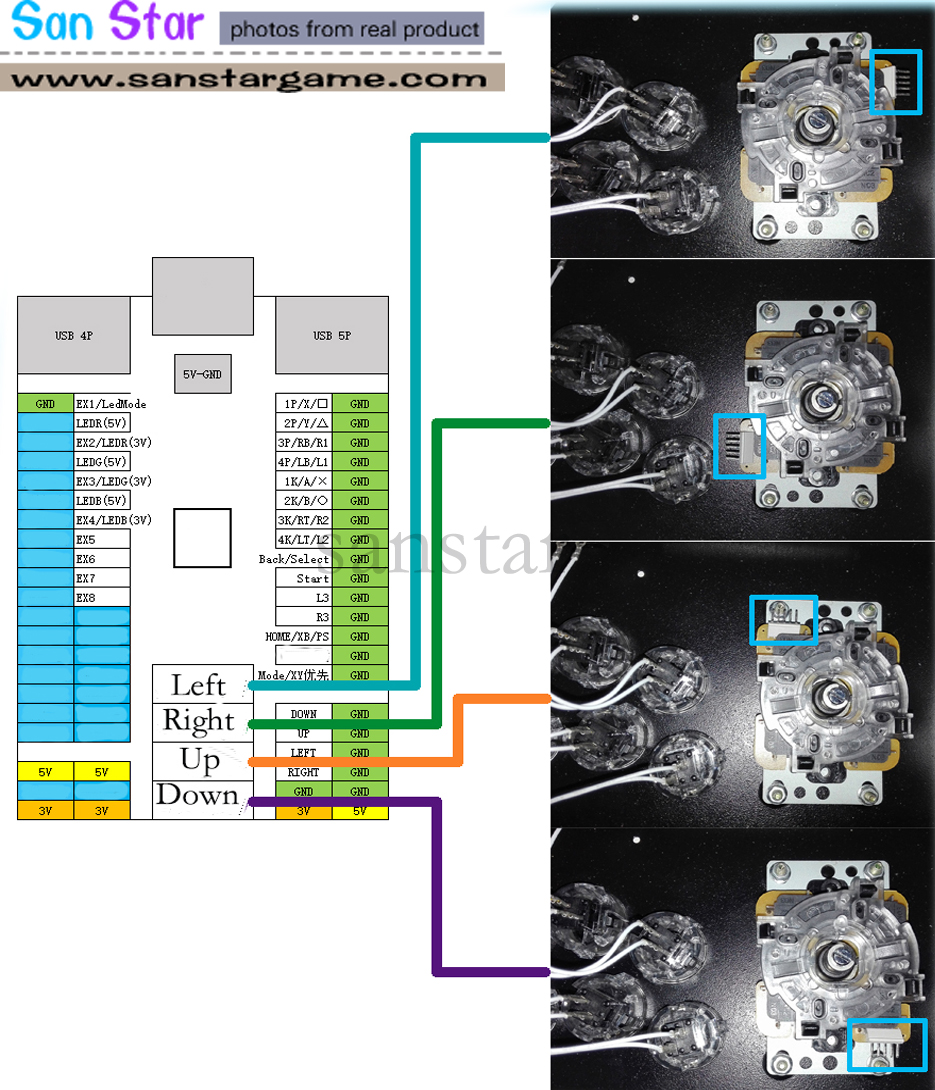

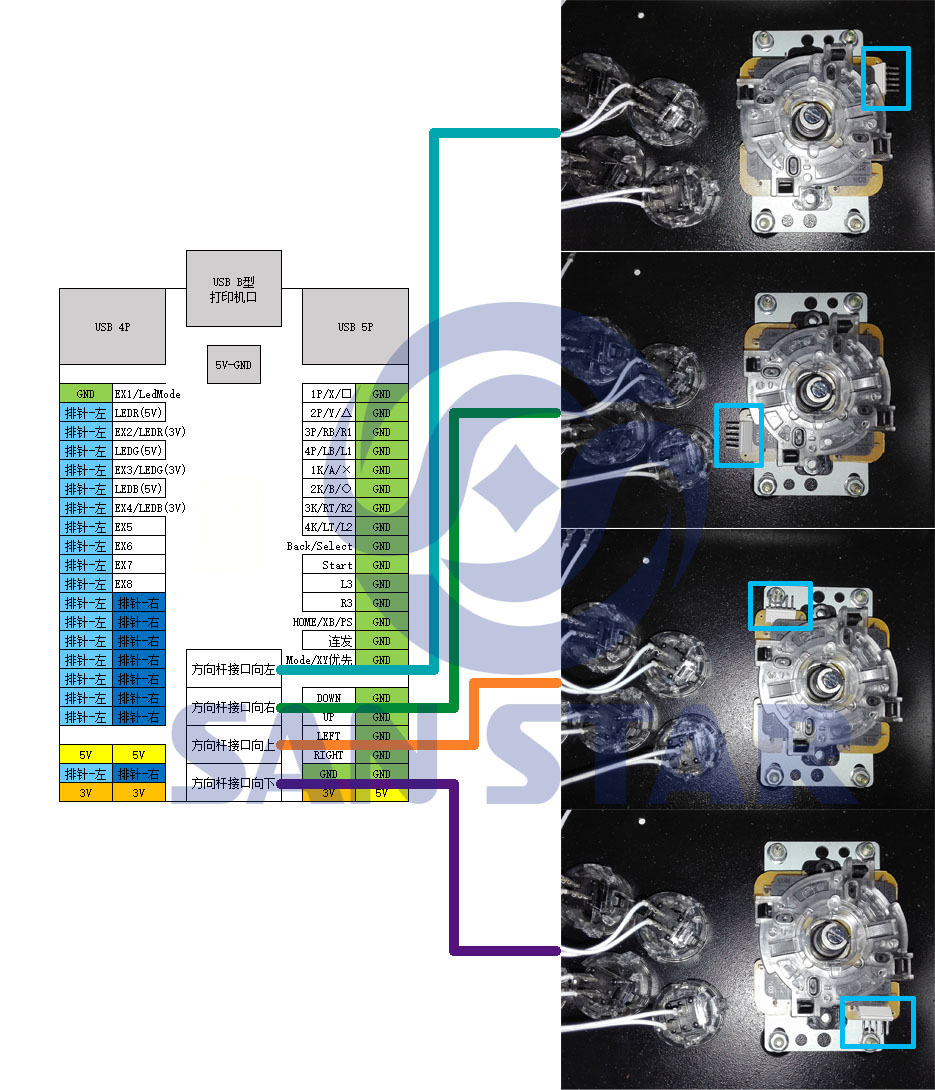

The direction of joystick connect for the 5 pin cable may different from the pin direction.From top/face of normal controller or arcade machine, joystick is on the left hand size,buttons are on right hand size, (when you install ,left and right is contrary)take Sanwa joystick as example connect as following:



1. Mode switch
This encoder have 3 different mode: PS3, PC360.
PS3 Mode: can support PC,PS3,PS4(not perfect),Android, no need install any driver.
PC360 Mode: Just support PC, not Xbox360. At XP system need to install Xbox360 control driver then just can use. At WIN7 or higher version then no need install driver. Can perfectly play PC at STEAM platform with Street Fighter 5,Street Fighter 14 Taken Tag.
Press 1P/X/□ button connect USB is PS3 mode
Press 2P/Y/△ button connect USB is PS4 mode
Press 3P/RB/R1 button connect USB is PC360 mode
The encoder will remember the last mode you set. Then the next time when you use is with the same mode.

2. Axis Switch:
This encoder has the complex function of “XY axis priority” and “traditional Mode Key”.Can switch axis and with following way:

1. Put one jumper cap to mode button, then can default to XY axis.
2. Make a button to mode button, Mode button just switch between cross button (visual helmet) and left joystick(XY axis) .Press then switch. This type of Switch do not have memory function.
3. After the encoder connect USB, can press Start button and Direction button for 3 seconds at any time, and switch 3 different direction modes.

Start + ↑ / ↓ direction (up or down) = helmet / DP / cross-key mode (this mode is only recognized when playing games on the PS4 with the handle, PC Tekken 7 only recognizes this mode)
Start + ← direction (left direction) = XY axis / LS / left stick mode (older arcade simulator Winkawaks on PC only recognizes this mode)
Start + → Direction (Right Direction) = Z-Axis and Z-Rotation / RS / Right Joystick Mode
After switching the directional mode with this method, the encoder will remember this mode, which will be the default mode at the next power-on.
3. TURBO Button setting
Turbo(Continuous shooting/hitting) function can be set in all game modes. As following:
Press and hold the TURBO Button, press any button you want to set with this function. For example if want to set 1P then press and hold TURBO Button then press 1p, then release 1p,final release TURBO Button.
If you want to cancel this function of the button, just press the TURBO Button and release it.
4. Turbo(Continuous shooting/hitting) speed setting:
Because the number of frames of the game is different, the response speeds of the games corresponding to different games are also different. If the speeds do not match, there is a phenomenon that Turbo(Continuous shooting/hitting) functions do not achieve the desired effect.
The method of setting the Turbo(Continuous shooting/hitting) speed as:
Press and hold TURBO Button +↑ direction (upward direction) = ultimate speed Turbo(continuous shooting/hitting) for 60F games, such as Street Fighter 5 and other new games
Press and hold TURBO Button + ← direction (left) = high speed continuous shooting/hitting
Press and hold TURBO Button +↓ direction (Downward) = Medium Speed, suitable for arcade simulator games such as KOF, Metal Slug, and Three Kingdoms.
Press and hold TURBO Button + →Direction (Right) = Slow speed
5. Universal shortcuts
Press the Home button + Select button and insert USB to enter the upgrade mode. In the "Devices and Printers" of the "Control Panel", there will be a BlueFlame USB Update device, indicating successful entry into the upgrade mode.
Press the Home button + Start button and insert USB to restore the factory default settings. After inserting the USB into this mode, as usual, the encoder will not have any special device prompts. If the memory function fails, the memory function can be restored using this method.


Note:
