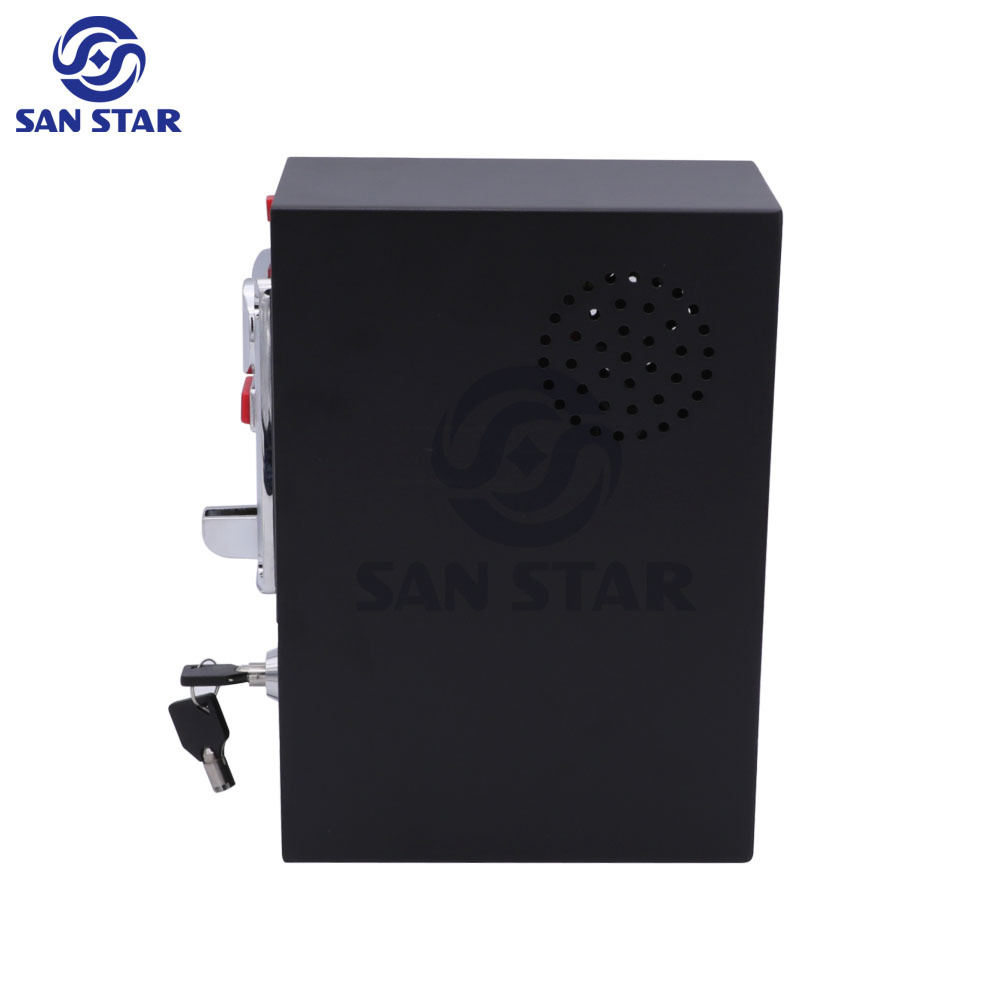

6 Coin Groups Multi Coin Acceptor Box With PC Control

SKU: CSB
This is a Multi Coin Acceptor Box can accept 6 groups of coins and with PC Control can use with Computer and Internet Cafe Kiosk etc.
0.0 (0 Reviews)
0 Sold
$81.25 $20.20
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Specification:

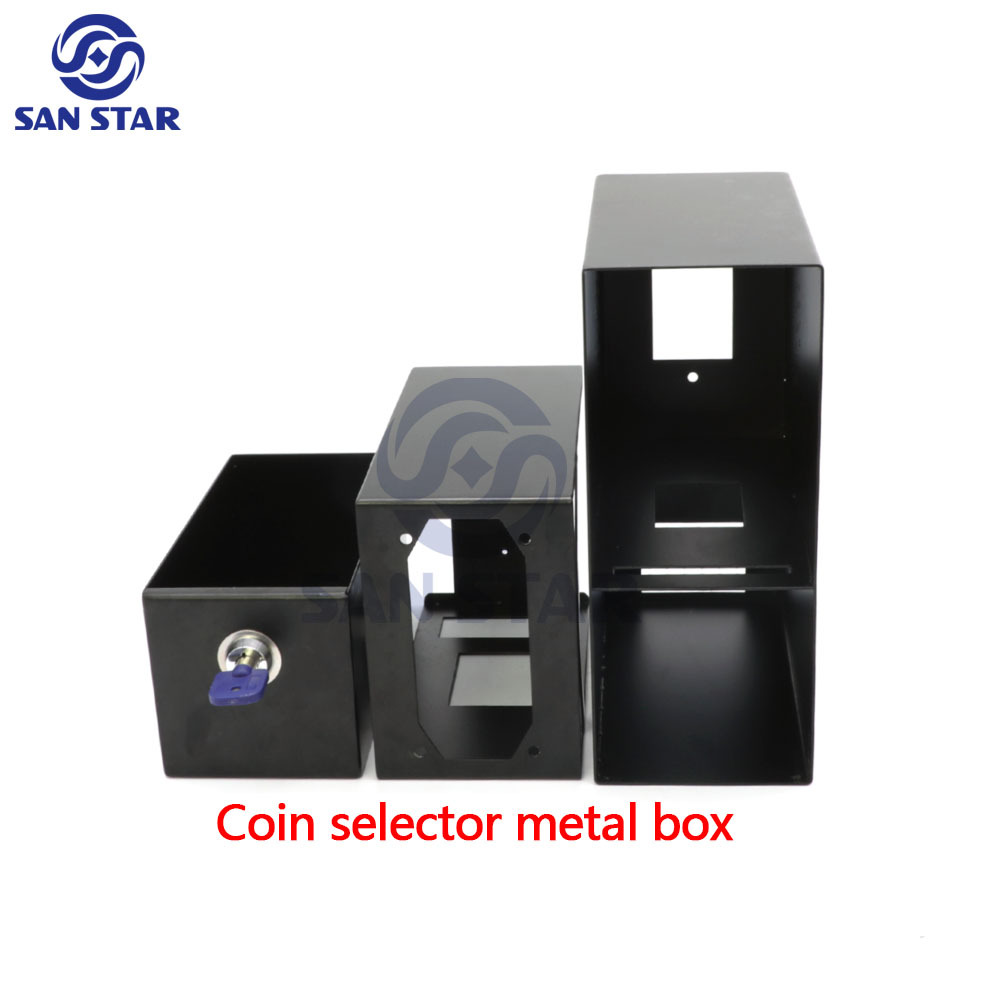

    Metal case
    Metal case

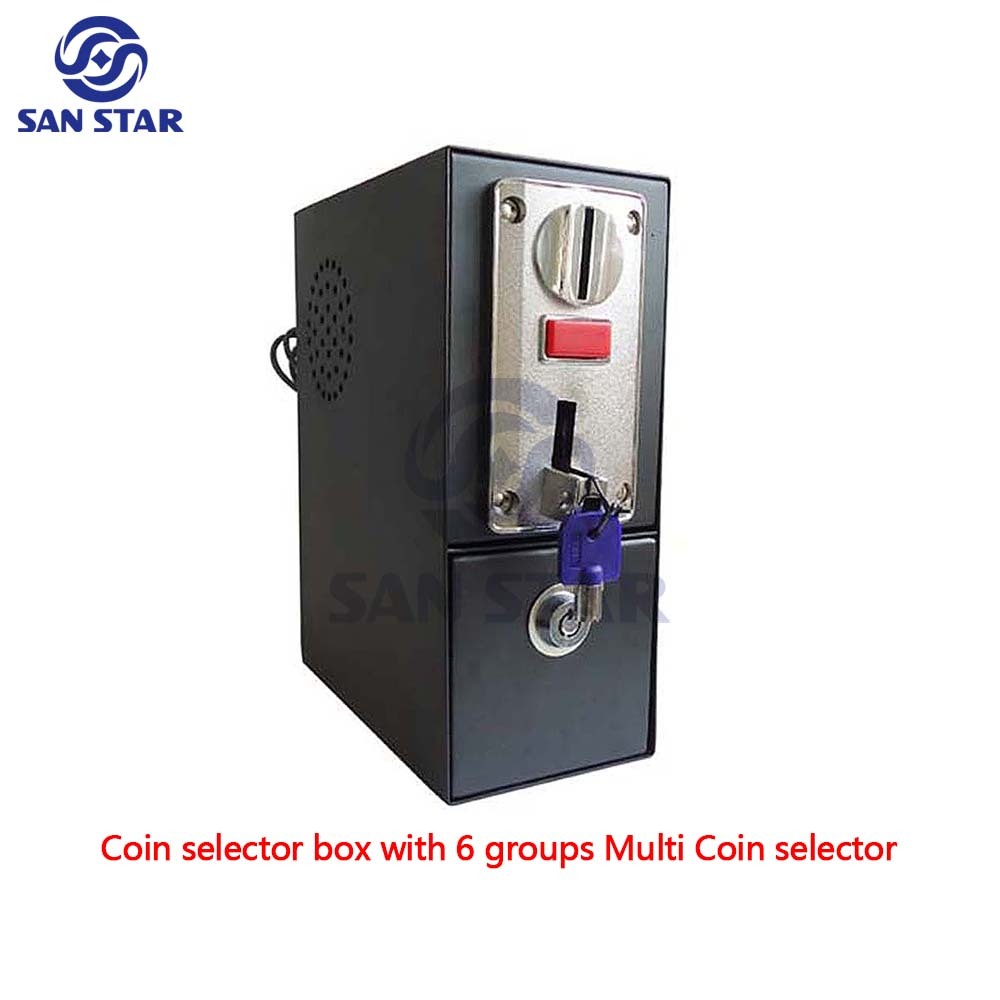

    Metal case with coin selector
    Metal case with coin selector

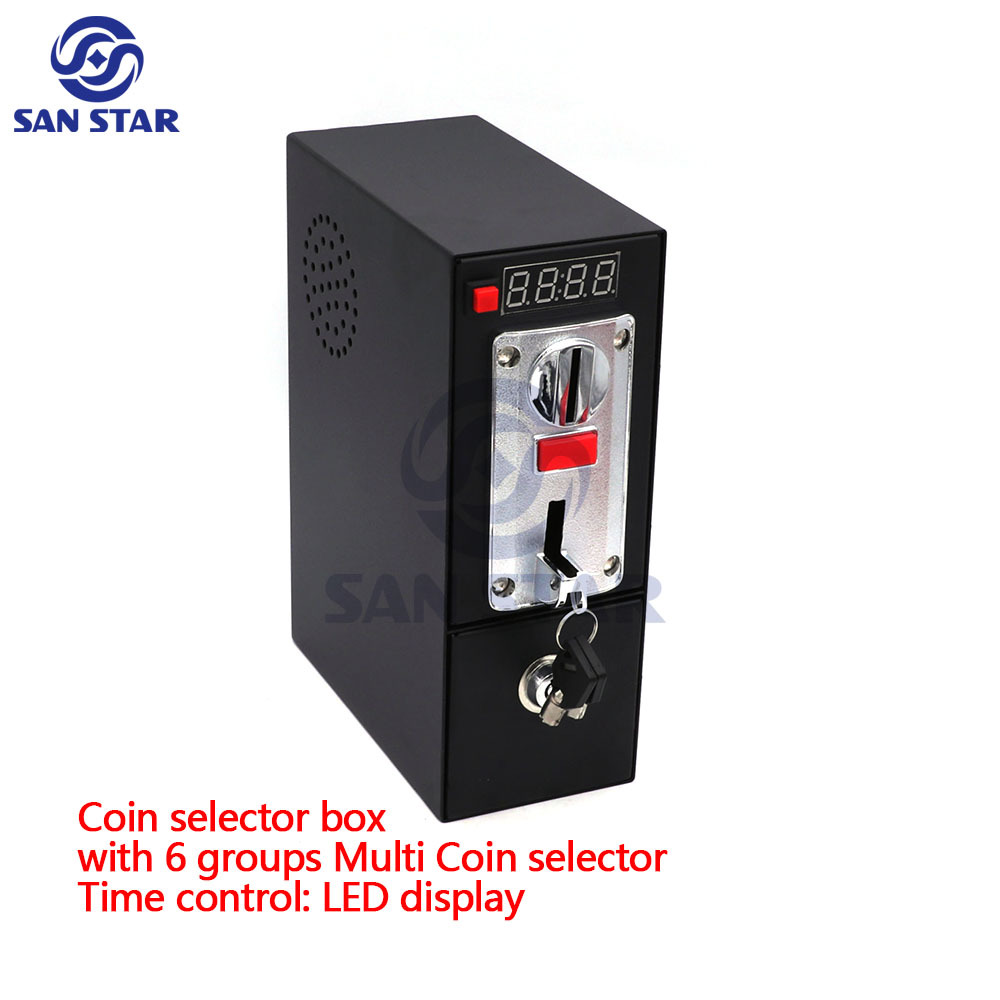

    Metal case with coin selector & time control
    Metal case with coin selector & time control
Quantity
-
+
  • 6 Coin Groups Multi Coin Acceptor Box With PC Control
  • 6 Coin Groups Multi Coin Acceptor Box With PC Control
  • 6 Coin Groups Multi Coin Acceptor Box With PC Control
  • 6 Coin Groups Multi Coin Acceptor Box With PC Control
  • 6 Coin Groups Multi Coin Acceptor Box With PC Control
  • 6 Coin Groups Multi Coin Acceptor Box With PC Control
  • 6 Coin Groups Multi Coin Acceptor Box With PC Control
  • 6 Coin Groups Multi Coin Acceptor Box With PC Control
  • 6 Coin Groups Multi Coin Acceptor Box With PC Control
  • 6 Coin Groups Multi Coin Acceptor Box With PC Control
  • Description
This coin acceptor is a electronic coin acceptor with high reliability, Which is
widely used in amusement facilities, vending machines and so on.
 Main Features:
 Enable to recognize 6 groups of coins in different denomination. (can exceed to 8
groups if need)
 Enable to forbid accepting all coins
 Industrial standard connector ---10Pin Parallel port
 Special connector ---5Pin Serial port
 Enable to release coins in jam
 Enable to self-diagnose
With strong metal body.
Coin Size Diameter: 17 – 30.5mm
Thickness: 1.25 – 3.2mm
Working Environment
Working Temperature:
0°C to 50°C
Storage Temperature: -30°C to55°C
Ambient Humidity: Up to 95% RH non-condensing

Working Voltage: Normal 12VDC
Min 10VDC
Max 15VDC
Working Current: Standby 50mA
Max 450mA ( At the instant of collecting
coin)
Communication Interface:Standard parallel port -- 10Pin
Special serial port -- 5Pin
Installation Position: On any plane, the angle can't be more than 2
degrees between coin acceptor and vertical



  • Coin Accoptor with PC control software for Vending Computer and Internet Cafe Kiosk.
  • Our company offer the installation software for free.
  • Coin acceptor connects via PC USB COM or RS232 COM port.
  • Applicable to PC WIN2000/XP operation system.
  • Enable to set coins, time and Screen Saver by self.
  • When available time uses out, system locks screen, mouse, keyboard, sound and etc all I/O Device automatically, until start up with next coins depositing.
  • Enable to program tariff rates for different period.
  • Provides and sends the charge details to the designated email box.
  • Able to receive multi-value coins when cooperate with our multi-value coin acceptor.


  • Note:
    1.As every country have different policy for import tax, so our price is not include the import tax. Please check your local tax before buying. Brazil customer if goods sent by EMS but can not receive goods for long time after goods sent out, please contact your local post office.

    2.Ship cost is base on your detail delivery address is not remote area. If your detail delivery address is a remote area then need to pay USD $30 remote area fee.

    3.If you want to change shipping method or combine order, please confirm your order but not pay, and contact us to adjust.

    We have many kind of arcade parts and arcade game Pcb.You can build or replace your machine or your arcade stick with convenience way.

    Our product brand include: Zippy, Sanwa, Semitsu,Weiya ,and other local brand with good quality.

    Our arcade parts include: Joystick ,Arcade Button, Speaker ,Speaker grill, Cooling Fans ,Fans net, Coin Acceptor, Power supply, Cable Holder, Wiring Harness, PCB Feet, TrackBall, Cam Locks, Coin Door, USB to joystick, Arcade controller, Joystick Encoder, Timer Board, Video Converter Board, Crane Machine Parts and other arcade game machine parts

    Our game pcb include: Game Family 2100 In 1 game board, Game Elf 750 In 1, Game Elf 412 In 1, Pandora Box 5, Classic 60 In 1, 19 in 1, Neo Geo 161 in 1, 120 In 1,and so on...

    Our casino Game PCB include: XXL 14 In 1,  XXL 15 In 1,XXL 17 In 1, ,Mega 7 In 1, 6X, 7X, 9 In 1, 16 In 1 Gaminator 5 In 1 Mega 1 in 1, , and so on...

    To further inquiry,please don't hesitate to contact with us with [email protected]
