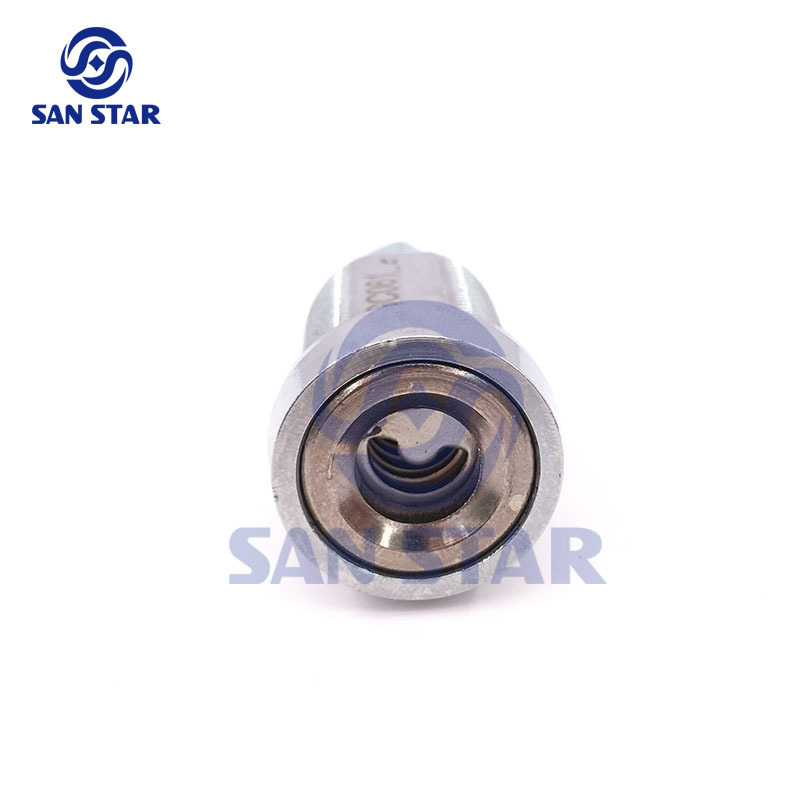

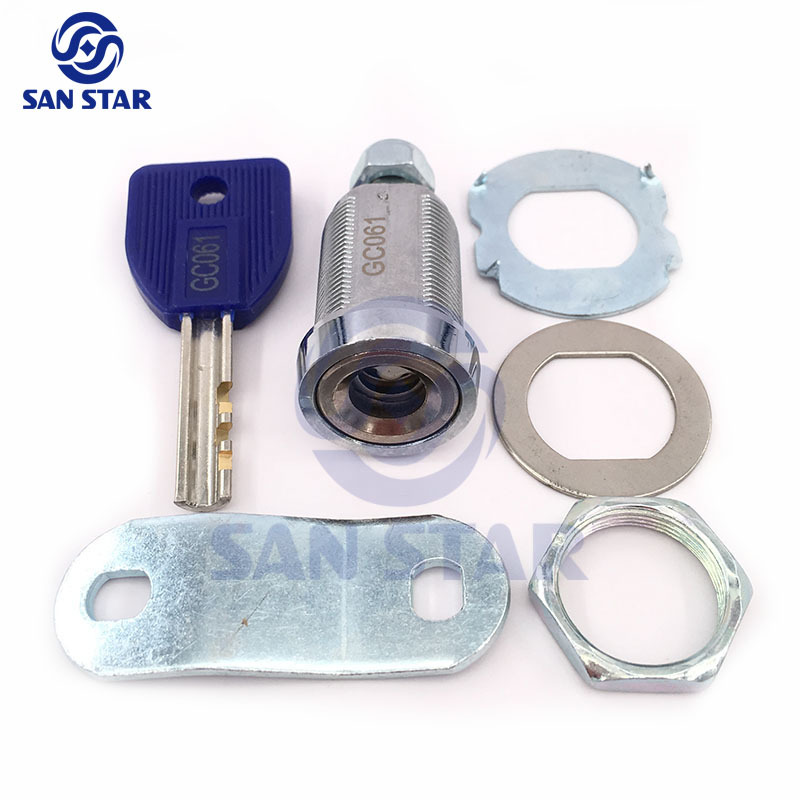

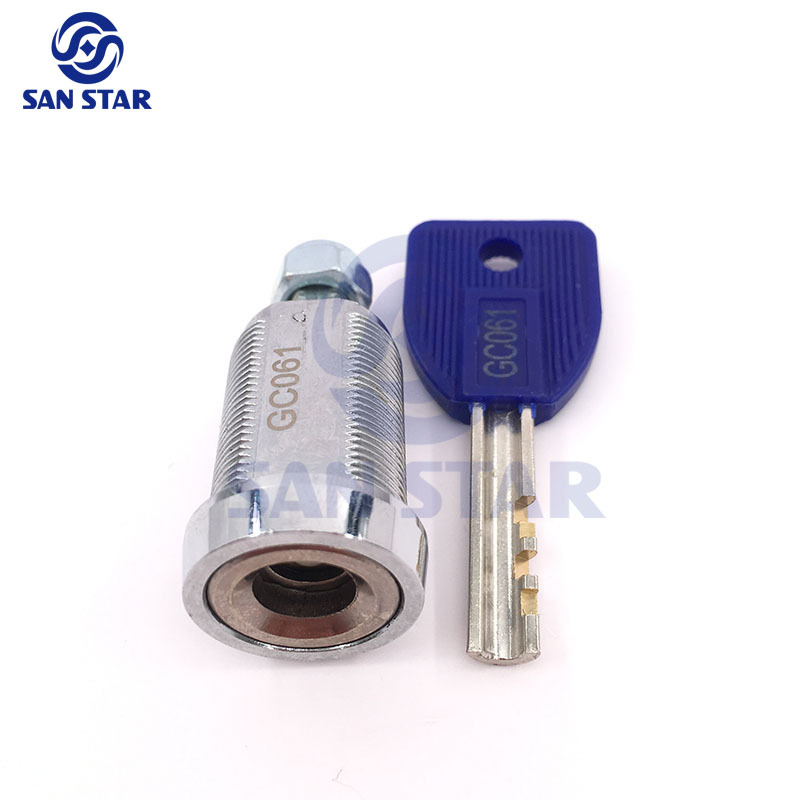

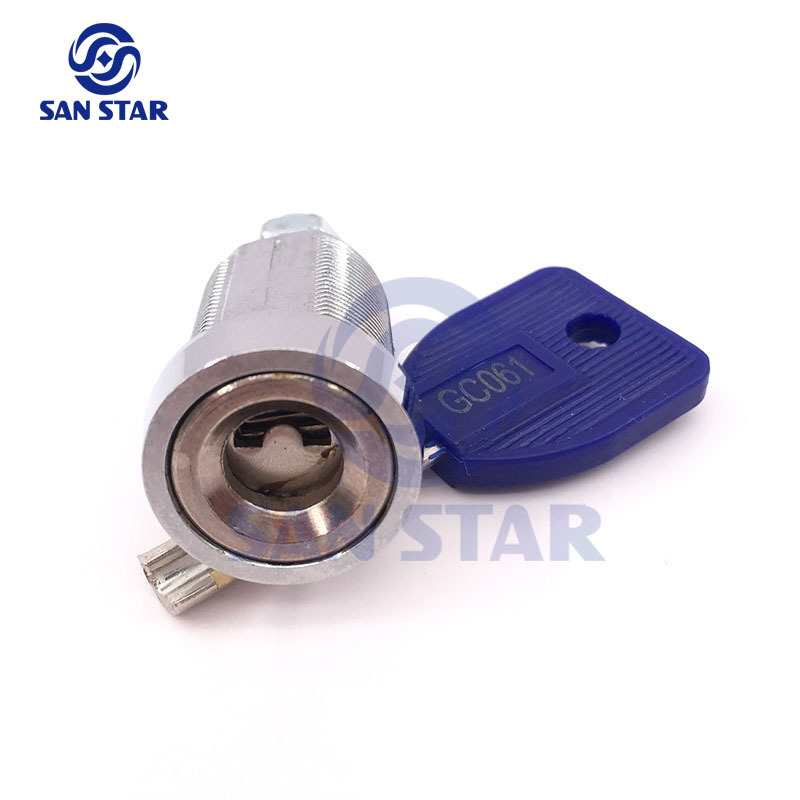

This 25mm zinc alloy cam lock is designed for arcade game machines, arcade cabinets and other cabinet applications that require a compact mechanical locking solution.
The lock features a chrome-plated zinc alloy body and a crescent-shaped key. Each lock is supplied with one matching key. The current product configuration is listed as Cam Lock CL6.
The lock body is made from zinc alloy with a chrome-plated surface treatment, providing a compact metal locking component for cabinet applications.

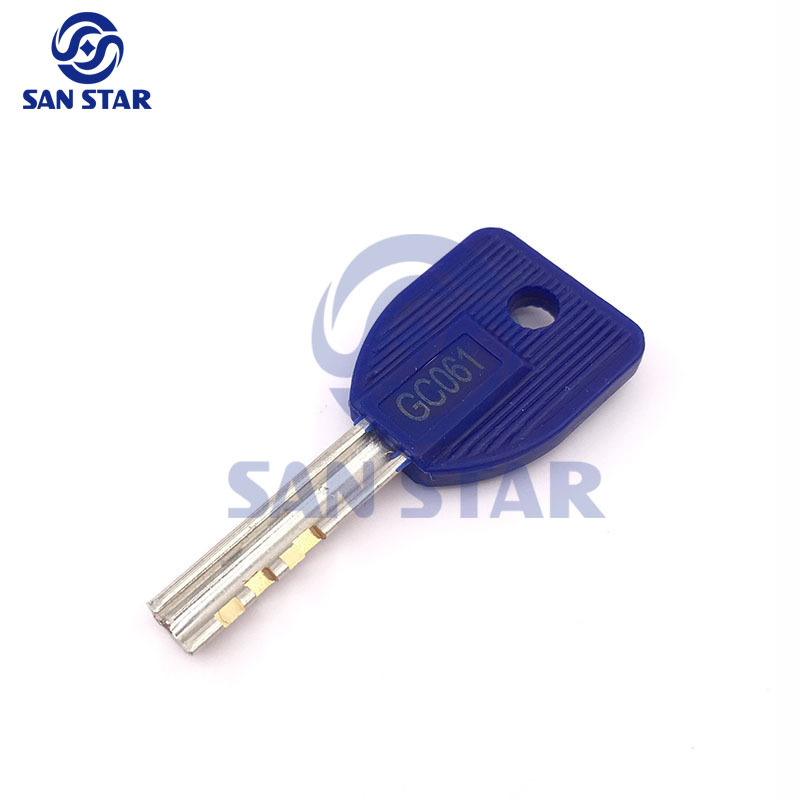

The product uses a crescent-shaped key designed for the corresponding cam lock. Each individual lock includes one key.
The current product specification also states that the key cannot be pulled out when the lock is open.
This cam lock can be used with arcade game machines and other cabinets, making it suitable for arcade cabinet assembly, replacement and maintenance applications.
The product is available in packs of 10 pieces, with the locks in the pack using the same code and matching keys. This can be useful when multiple cabinet locks need to use the same key configuration.
Suitable applications include:
| Specification | Details |
|---|---|
| Product Type | Cam Lock |
| SKU | Cam Lock CL6 |

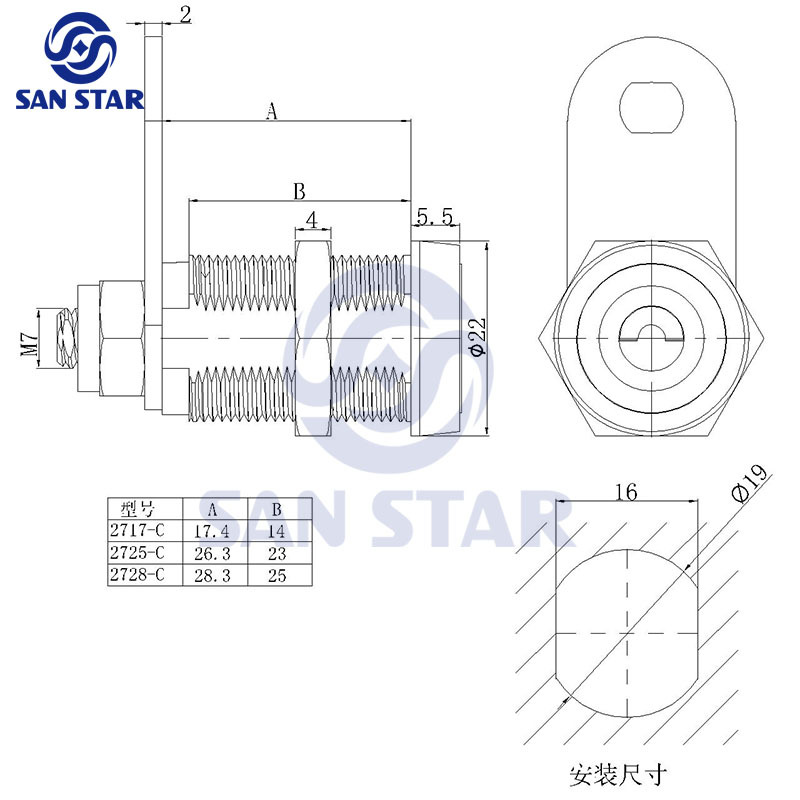

| Lock Size | 25mm |
| Material | Zinc Alloy |
| Surface Treatment | Chrome Plating |
| Key Type | Crescent Key |
| Key Included | 1 Key per Lock |
| Opening Direction | Right |
| Key Removal | Key cannot be removed when open |
| Pack Configuration | 10 pcs per pack |
| Key Code | Same code / Key alike |
| Application | Arcade Machine / Cabinet |
Standard configuration:
Pack configuration:
The product page currently specifies one lock and one key as the individual configuration, with a 10-piece pack using the same code/key-alike configuration.
